• High resolution: 1mV/1mA
• Up to 40kHz voltage and current testing speed
• Multi-mode battery discharging test
• List mode supports auto test
• Independent short-circuit test
• Protections of over-voltage/under-voltage/over-current/ over-power/over-temperature/anti-reverse connection

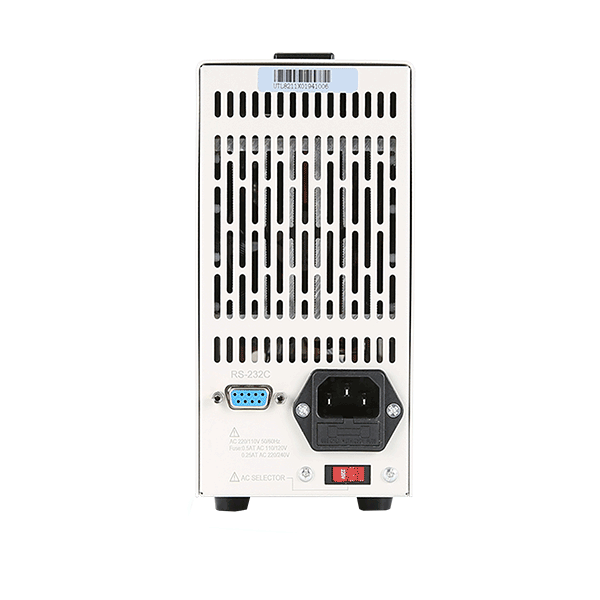

• Standard RS-232C interface, SCPI protocol is supported

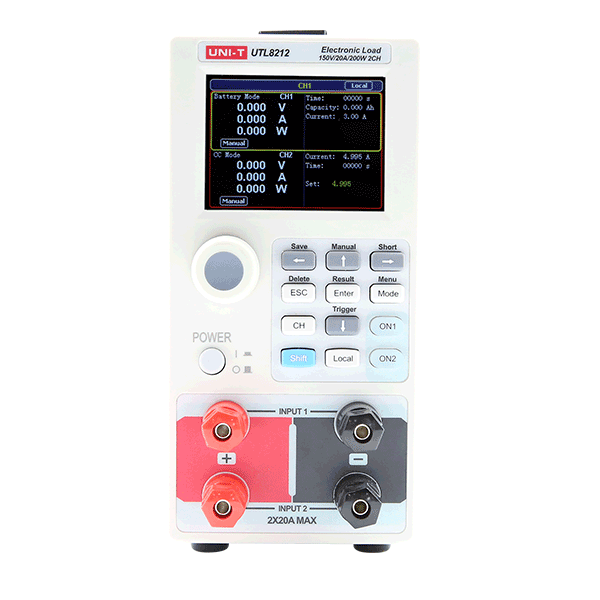

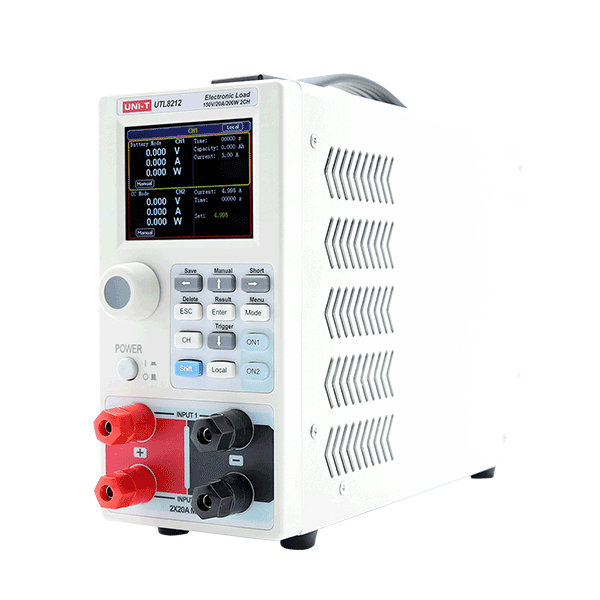

The UTL8200 Series designed for users requiring a DC load with a compact form factor which is widely used in basic applications such as product production line and maintenance. Small size, easy operation, rich testing functions and modes, support for dual-channel independent testing, the standard RS-232 interfaces for remote communication to meet your diversified test requirements, easy to connect seamlessly with automatic production line and automatic test system (ATS). With a wide range of power measurement, voltage and current measurement speed up to 40kHz, test resolution up to 1mV/1mA, the UTL8200 series is a cost-effective DC load with performance specifications that rival any instrument in its class.
