- Non sequence drilling operation mode
- Advanced and precise physical-mathematical mode
- Creating training snapshot according to real well condition
- Systematic training content and flexible configuration
- Full size, real device operational environment
- Intelligent scoring, fair and square
- 3D, interactive animation
- Friendly user interface
- Real sound effect and alarm system
- Industrial PLC controlling, high stability and reliability
- Real time voice prompt

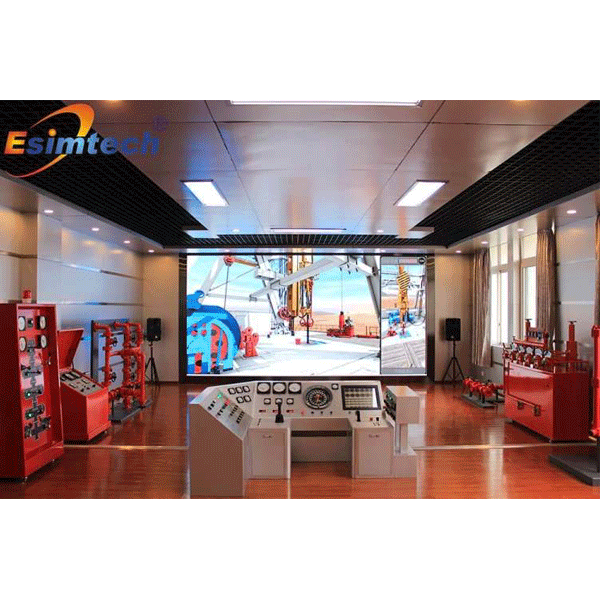

Drilling simulation training system simulates the real equipment on real production site, including all the hardware system, panel layout, operation methods and parameter displaying. Through a display screen, the 3D animation is presented in accordance with the working condition, and the sound effect that simulates the real rig floor, makes up an immersive training environment. Based on technologies such as advanced computer controlling technology, artificial intelligence technology, scientific visualization technology virtual reality technology and advanced network technology, combined with strict simulation of drilling engineer process and reliable physical-mathematical model, this system provides various training projects such as tripping in and out, drilling, well control, equipment fault detecting and treatment of drilling accident and troubles. The non-sequence drilling operation mode, different from the stereotype training mode enables students to operate arbitrarily on the basis of snapshot. This drilling simulator realizes the highly emulation from well condition to system operation, improves the flexibility of students’ operation and enables students to make great progress on training efficiency and training effect.
Non sequence drilling operation mode
Advanced and precise physical-mathematical mode
Creating training snapshot according to real well condition
Systematic training content and flexible configuration
Full size, real device operational environment
Intelligent scoring, fair and square
3D, interactive animation
Friendly user interface
Real sound effect and alarm system
Industrial PLC controlling, high stability and reliability
Real time voice prompt
Operation voltage: 220V 50Hz AC
Power consumption: < 15000 Watt
Operating temperature: 0?-40?
Display resolution: 1920*1080, 3840*2160
Average working time without failure:≥5000 hour
Area: ≥40m2
Driller console

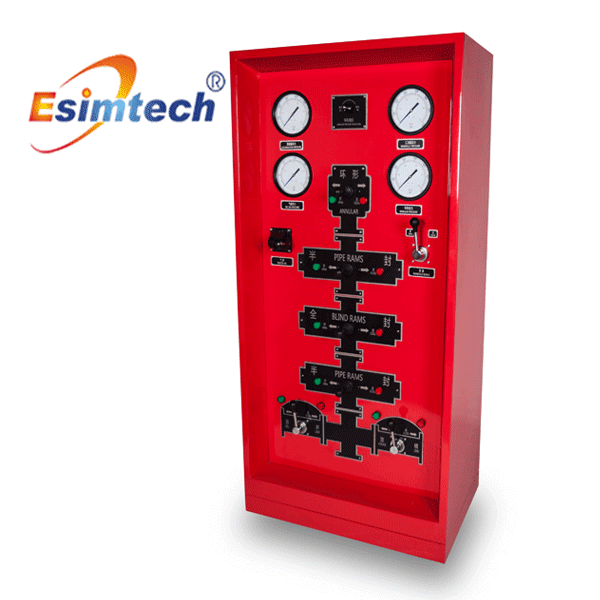

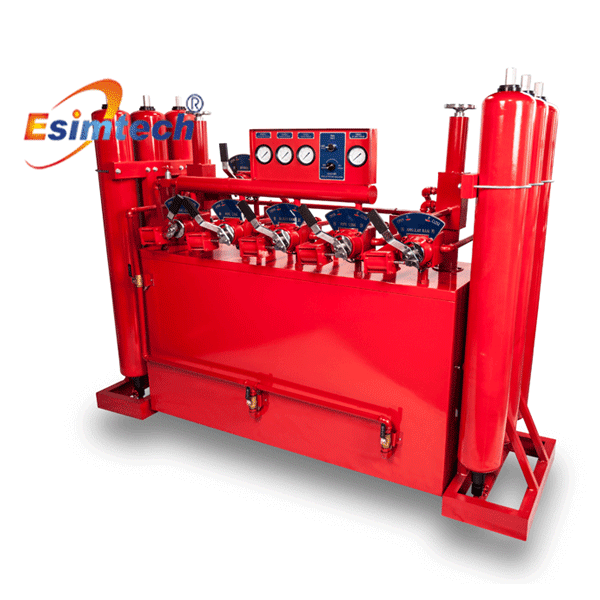

BOP console
Remote console

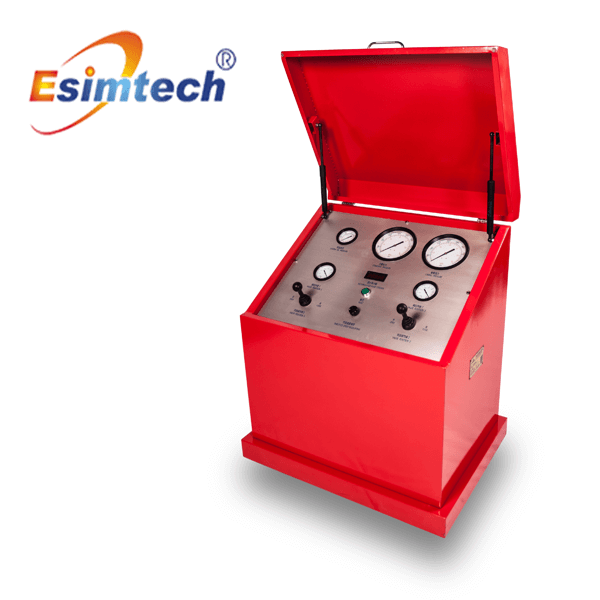

Choke console

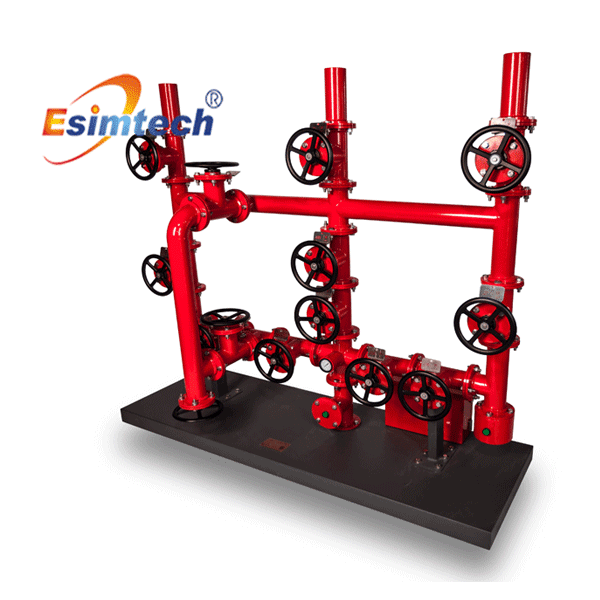

Standpipe manifold
Choke manifold
Kill manifold
1. Tripping module
(1) Normal tripping in
(2) Slacking off operation
(3) Normal tripping out
(4) Getting overpull operation
2. Drilling module
(1) Normal drilling and picking up stand (single)
(2) Normal drilling and drilling with bouncing bit
(3) Drilling in low pressure formation
3. Downhole accidents and troubles handling module:
(1) Judging and treatment of wall sticking
(2) Judging and treatment of sand settling
(3) Judging and treatment of balling up
(4) Judging and treatment of hole collapse
(5) Judging and treatment of key seating
(6) Judging and treatment of hole shrinking
(7) Well immersion (gas immersion, brine immersion)
(8) Fishing tap
(9) Junk milling
4. Shut-in
(1) Shutting in operation when overflow occurs while drilling
(2) Shutting in operation when overflow occurs while tripping in and out
(3) Stripping after shutting in when overflow occurs while tripping out
(4) Shutting in operation when overflow occurs while tripping in and out collar
(5) Shutting in operation when overflow occurs in barren hole
5. Cementing
(1) Running casing
(2) Drilling out plug
(3) Cementing
