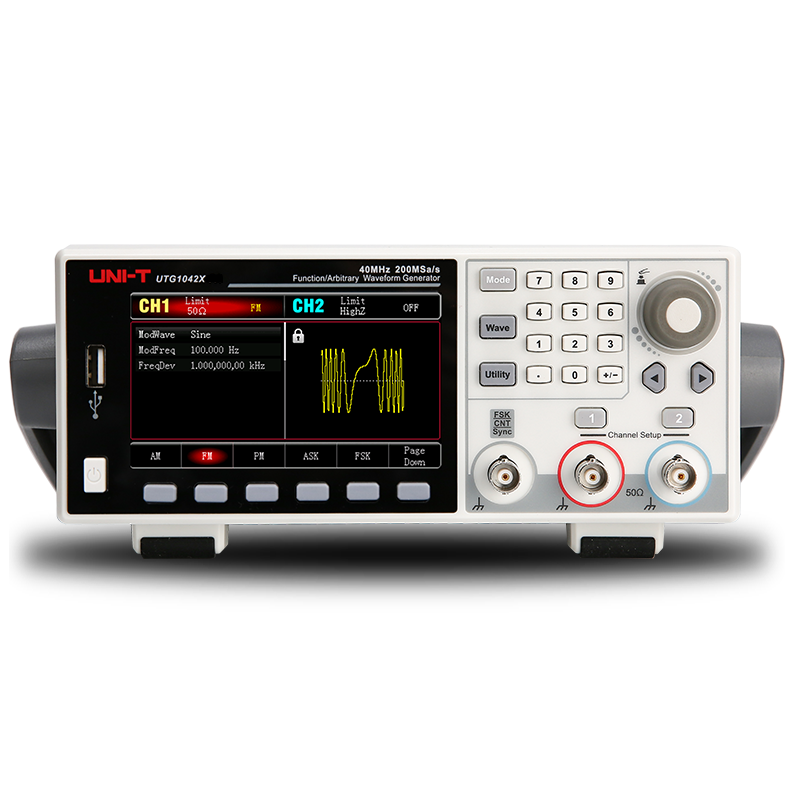

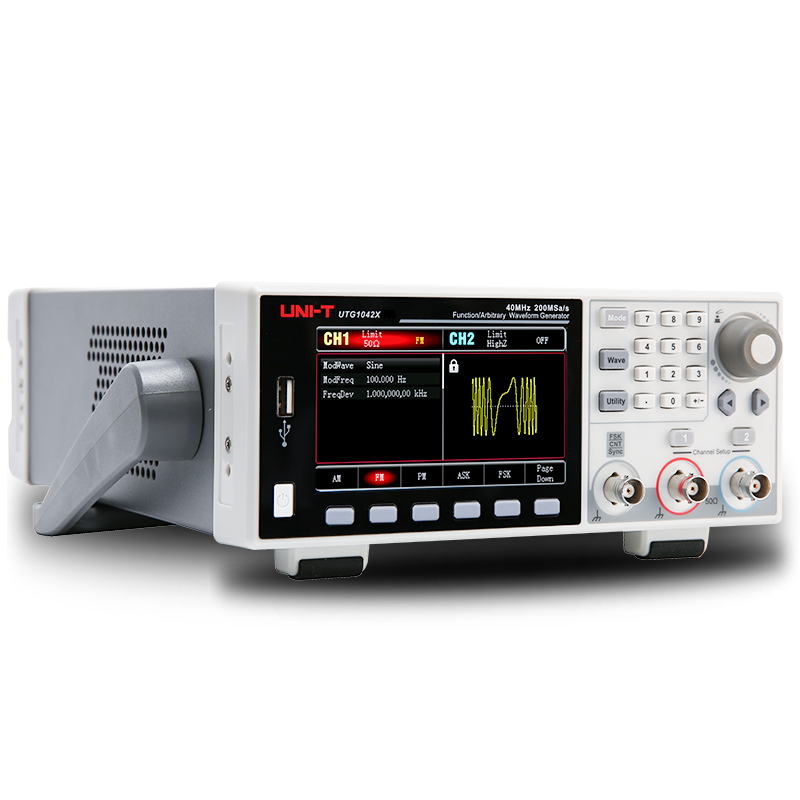

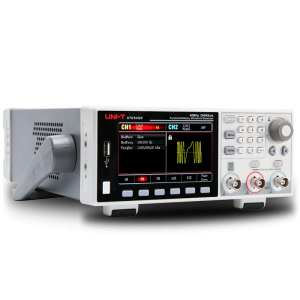

The UTG1000X series has precise and stable waveform output with a resolution as low as 1μHz. It is an economical, high-performance, and multi-functional function/arbitrary waveform generator. Accurate, stable, clean, low-distortion output signals can be generated. With convenient operation, superior technical indicators and humanized graphic display, it is a multi-purpose device that meets the needs of learning, testing and production.
Fundamental wave characteristic |
||
| Model | UTG1022X/-PA | UTG1042X |
| Channel | Dual channel | |
| Sampling rate | 200 MSa/s | |
| Vertical resolution | 16-bit | |
| Waveform characteristic | 6 standard waveforms, 200 built-in arbitrary waveforms | |
| Waveform | Sine, Square, Ramp, Pulse, Noise, DC, Arb, AM, FM, PM, ASK, FSK, PSK, PWM?frequency sweep, burst | |
| Working modes | Output gating, continuous, modulation, frequency sweep | |
| LCD | 4.3" TFT LCD, WVGA(480×272) | |
