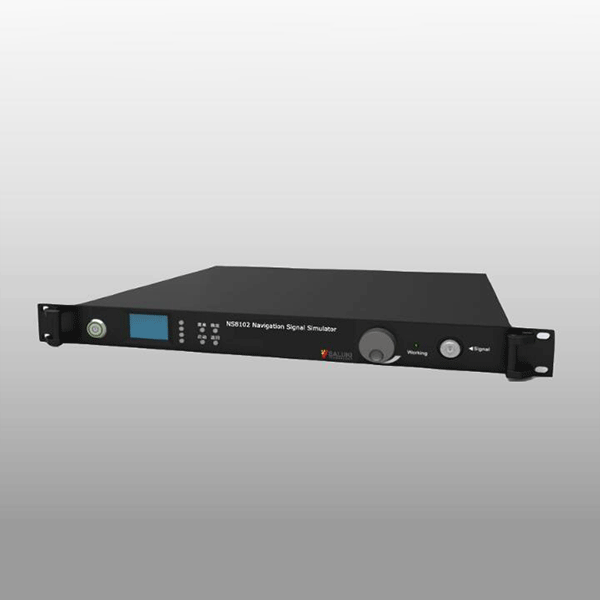

Saluki NS8102 series navigation signal simulator is a cost-effective test solution for satellite navigation terminal manufacturers. It is configured with 8 signal channels. NS8102 series has the satellite navigation signal analog output capability of BDS constellation (36 RNSS), GPS constellation (32), GLONASS constellation (24), Galileo constellation (24) and its mixed constellation.
Saluki NS8102 series navigation signal simulator is a cost-effective test solution for satellite navigation terminal manufacturers. It is configured with 8 signal channels. NS8102 series has the satellite navigation signal analog output capability of BDS constellation (36 RNSS), GPS constellation (32), GLONASS constellation (24), Galileo constellation (24) and its mixed constellation. Optional standard Ethernet interface for easy integration into production line ATE systems and for PCBA testing of semi-finished and finished products.
NS8102 series navigation signal simulator has many features like small size, light weight, easy to carry, abundant functions etc.. It supports both wired and wireless test methods, which can be used for user machine sensitivity, signal-to-noise ratio, first positioning time, positioning accuracy, speed measurement accuracy and other indicators test. It is suitable for car navigation, navigation mobile phone, digital products (with navigation) manufacturers to test and use.
|
Output Frequency |
BeiDou |
B1:1561.098MHz, B2:1207.14MHz, B3:1268.52MHz |
||
|
GPS |
L1:1575.42MHz, L2:1227.60MHz, L5:1176.45MHz |
|||
|
GLONASS |
L1:1602.00MHz, L2:1246.00MHz | |||
|
Galileo |
E1:1575.42MHz, E5a:1176.45MHz, E5b:1207.14MHz | |||
|
RDSS |
L: 1618.25MHz, S: 2491.75MHz | |||
|
Modulation System |
Mode |
BPSK |
||
|
Signal Scale |
Channel Number |
1 or 8 channels per frequency |
||
|
Signal Quality |
Spurious (Max) |
-40dBc |
Harmonics (Max) |
-35dBc |
|
Phase Noise |
-75dBc/Hz @100Hz |
-80dBc/Hz @1kHz |
-85dBc/Hz @10kHz |
-90dBc/Hz @100kHz |
|
Signal Power Control |
Resolution |
Superior to 1dB |
Absolute accuracy |
Superior to 1dB |
|
Power Range |
-150dBm to -60dBm | |||
|
External Interface |
RF Output Port |
1 N-type |
||
|
Power Supply |
AC power: 220V±20V, 200W |
|
Size |
518.4*482.6*44mm |
|
Temperature Range |
Working temperature: -20°C to +50°C, Storage temperature: -45°C to +75°C |
| Model | NS7000 | NS8102 | NS8340 | NS9000 |
| Output Frequency |
BDS: B1/B2/B3 GPS: L1/L2/L5 GLONASS: L1/L2 /L3 Galileo: E1/E5a/E5b SBAS |
BDS: B1/B2/B3 GPS: L1/L2/L5 GLONASS: L1/L2 Galileo: E1/E5a/E5b RDSS: L/S |
BDS: B1/B2/B3 GPS: L1/L2/L5 GLONASS: L1/L2 Galileo: E1/E5a/E5b RDSS: L/S |
BDS: B1/B2/B3 GPS: L1/L2/L5 GLONASS: L1/L2 /L3 Galileo: E1/E5a/E5b SBAS |
| Frequency Point Number (max.) | 4 | 2 | 8 | All |
| Channel (max.) | 28 | 8 | 16 | 28 |
| Multi-GNSS | Yes | Yes | Yes | Yes |
| Multi-frequency | Yes | Yes | Yes | Yes |
| Multi-constellation | Yes | Yes | Yes | Yes |
| Application | Products development, industrial production, testing and certification | Car/mobile phone/ digital products (with navigation) testing |
Machine design and development |
Development, production, testing and certification of navigation receivers |
|
No. |
Item |
|
1 |
Main machine |
|
2 |
User manual |
|
3 |
Power cable |
|
4 |
Bundled RF cable |
|
Option No. |
Item |
|
NS8102-01 |
BDS B1 |
|
NS8102-02 |
BDS B2 |
|
NS8102-03 |
BDS B3 |
|
NS8102-04 |
GPS L1 |
|
NS8102-05 |
GPS L2 |
|
NS8102-06 |
GPS L5 |
|
NS8102-07 |
GLONASS L1 |
|
NS8102-08 |
GLONASS L2 |
|
NS8102-09 |
Galileo E1 |
|
NS8102-10 |
Galileo E5a |
|
NS8102-11 |
Galileo E5b |
|
NS8102-12 |
RDSS L |
|
NS8102-13 |
RDSS S |
