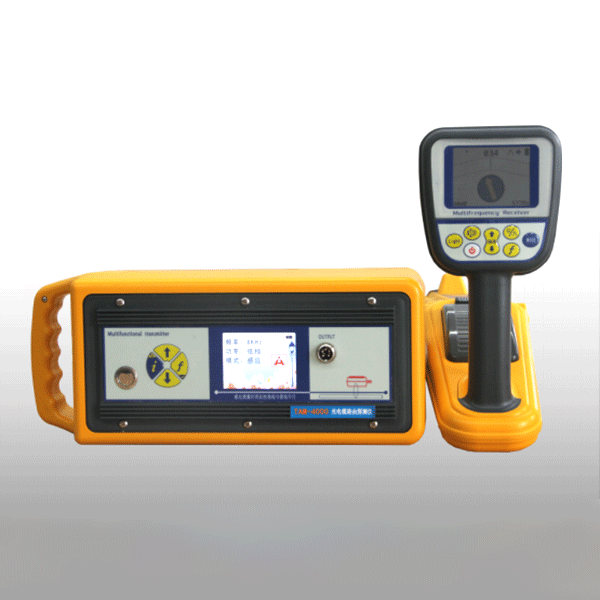

Saluki TAM4000 cable and pipe locator is designed to provide the best locate performance for damage prevention professionals working in all industries and utilities. TAM4000 is expert in pinpointing the location of underground electrical cables, optical cables and gas pipes.

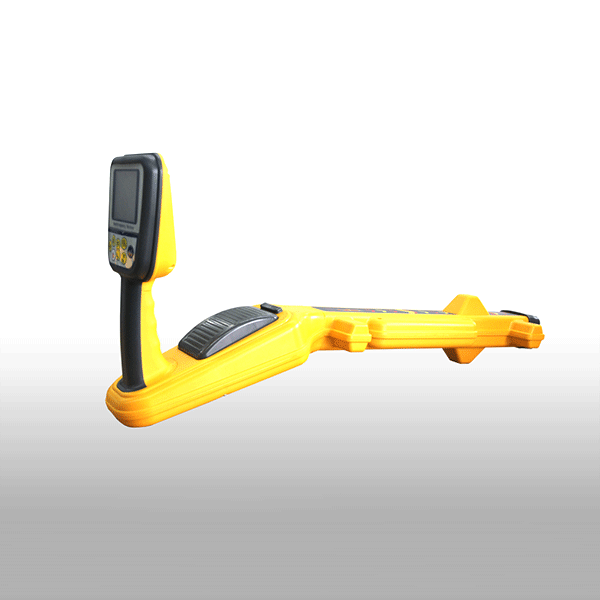

| Parameters | Specification |
| Active Locate Frequency | 50Hz, 60Hz, LF, 577Hz, 8kHz, 33kHz, 82kHz, 133kHz, SS Low, SS High |
| Passive Locate Frequency | 50 - 60Hz |
| Tracking Depth | 0 - 20M |
| Signal Strength Displayed | LCD, Voice prompt |
| Bar graph and numeric value (0-999) | |
| Gain Control | Auto gain |
| Gain Dynamic Range | 0 - 140dB |
| Accuracy | depth<=3m: ±5%, depth <=8m: ±10% |
| Active Locate Modes | Broad Peak, Null, Narrow Peak, Peak&Null, Broad Peak Arrow |
| Fault Find Display | Numeric value, grid display |
| Dimension | 700 x 200 x 110 mm |
| Battery | Li-on batteries, run-time (continuous): 8h |
| Weight | 2 kg |

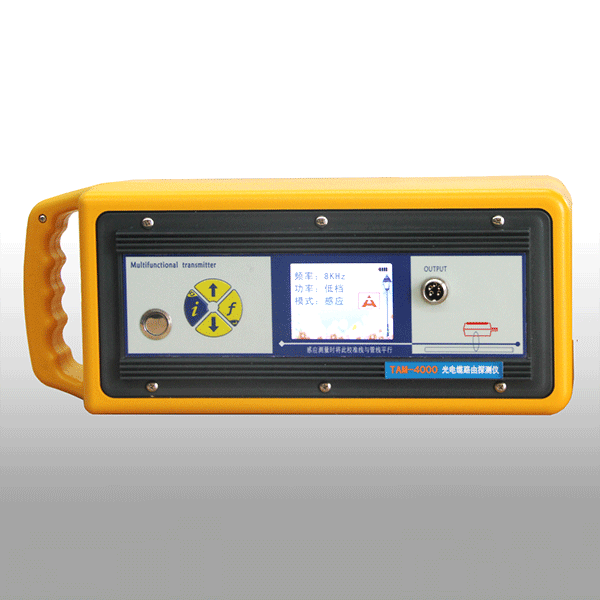

| Parameters | Specifications |
| Output Frequency |
98Hz, 128Hz, 256Hz, 480Hz, 491Hz, 512Hz, 577Hz, 640 Hz, 815Hz, 982Hz, 1.02kHz, 1.17KHz, 1.45KHz, 1.52KHz, 4.1KHz, 8.01KHz, 8KHz, 8.44KHz, 9.5KHz, 9.82 KHz, 29.4KHz, 33 KHz, 38 KHz, 65.5 KHz, 78.1KHz, 80.43 KHz, 82.3KHz, 83.1KHz, 89KHz, 133KHz, 200KHz (31 species) |
| Output Mode | Direct connection, induction, coupling |
| Output Power Level | >= 12W |
| Protection System | Dynamic overload and overheating protection |
| Dimension | 160 x 160 x 390 mm |
| Battery | 8PC no.1 rechargeable batteries, run-time (continuous): 4-8h |
| Power Supply | AC: 220V, 50-60Hz |
| Weight | 3.1 kg |
| No. | Item | Qty. |
| 1 | TAM4000 Locator Host | 1 PC |
| 2 | TAM4000 Transmitter Host | 1 PC |
| 3 | AC/DC Power Adapter | 2 PC |
| 4 | Direct Connection Signal Line | 1 PC |
| 5 | Coupling Clamp | 1 PC |
| 6 | Ground Clamp | 1 PC |
| 7 | Clamp Connection Line | 1 PC |
