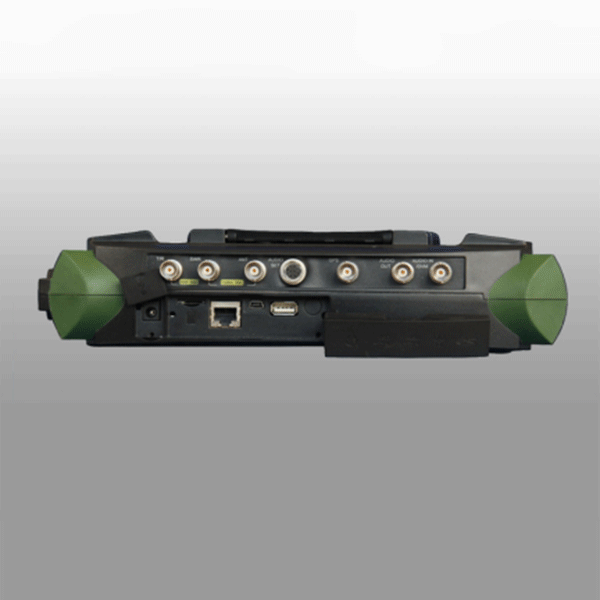

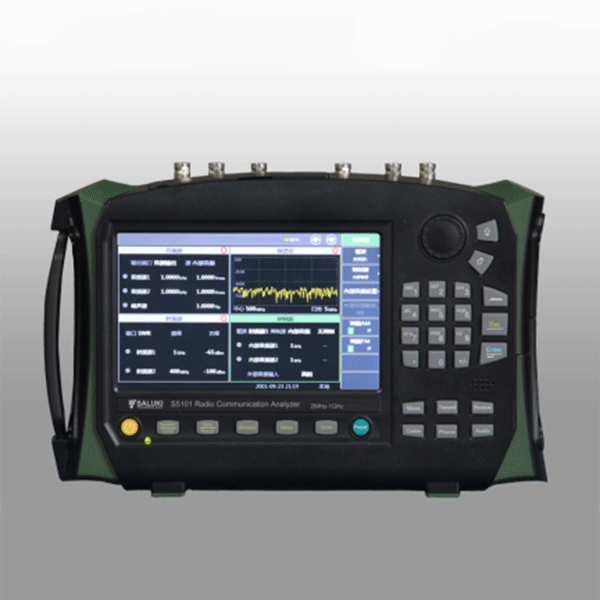

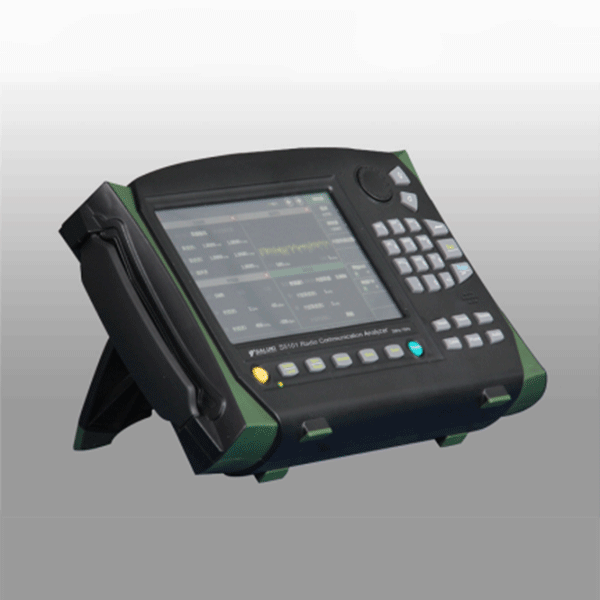

The Saluki S5101B Handheld Radio Communication Analyzer is the ideal radio tester for laboratory, production, service and maintenance use.
It combines radio frequency emission, reception analysis, audio source, analyzer, etc. all into one compact handheld unit. It can measure the performance of radios, interphone, audio equipment as well as testing communication cables and standing-wave ratio from 2MHz to 2.7GHz.
|
Frequency |
|
|
Frequency Range |
2MHz - 2.7GHz (Source 1) |
|
2 MHz-400 MHz (Source 2, ANT output) |
|
|
Resolution |
1Hz |
|
Amplitude |
|
|
Output level |
-5 dBm--55 dBm(SWR, Source 1) |
|
-5 dBm--100 dBm(ANT, Source 1) |
|
|
-50 dBm--125 dBm(T / R, Source 1) |
|
|
0 dBm--100 dBm(ANT, Source 2) |
|
|
Spectral Purity |
|
|
Single Sideband phase noise |
<=-95 dBc/Hz (Frequency offset 20 kHz) |
|
Harmonic spurious |
<=-30 dBc |
|
Non-harmonic spurious |
<=-35 dBc (Frequency offset>20 kHz) |
|
Build-in AM |
|
|
Frequency range |
30 Hz - 5kHz |
|
Amplitude range |
0-100 % |
|
Build-in FM |
|
|
Frequency range |
20 Hz-20 kHz |
|
Offset range |
Max.100 kHz |
|
Dimension (WxHxD) |
295 x195 x70 mm |
|
Weight |
<2.6 kg |
|
Battery Capacity |
7000 mAh |
|
Software |
||
|
S5101-S01 |
Audio Oscilloscope |
\ |
|
S5101-S02 |
Spectrum Analyzer |
\ |
|
Accessories |
||
|
S5101-H05 |
20dB Attenuator-50W |
High-power measurements extended |
|
S5101-H06 |
20dB Attenuator-150W |
High-power measurements extended |
|
S5101-H07 |
20dB Attenuator-200W |
High-power measurements extended |
|
S5101-H08 |
Audio Cassette Option |
For conversation to the outside, build-in speaker, microphone and cable |
|
S5101-H09 |
SAV20201A Type N Male cal kit |
Test and calibration of cables |
|
S5101-H10 |
SAV20201B Type N Female cal kit |
Test and calibration of cables |
|
S5101-H11 |
BNC/SMA-JK 1PC BNC/SMA-JJ 1PC |
BNC/SMA Adaptor |
|
S5101-H12 |
N/BNC-JJ 1PC N/BNC-KJ 1PC |
N/BNC Adaptor |
|
S5101-H13 |
High Impedance Passive Oscilloscope Sensor? |
For test of audio input/ DVM |
|
S5101-H14 |
External GPS cable? |
GPS localization |
|
S5101-H15 |
BNC Cable (80cm)? |
Extension of testing port |
|
S5101-H16 |
Purple UTP Cable |
Network interface control, 2M, point to point cable |
|
S5101-H17 |
Micro SD Class 4 |
Capacity 8G |
|
S5101-H18 |
Rechargeable Li Battery |
\ |
|
S5101-H20 |
Softbag |
\ |
