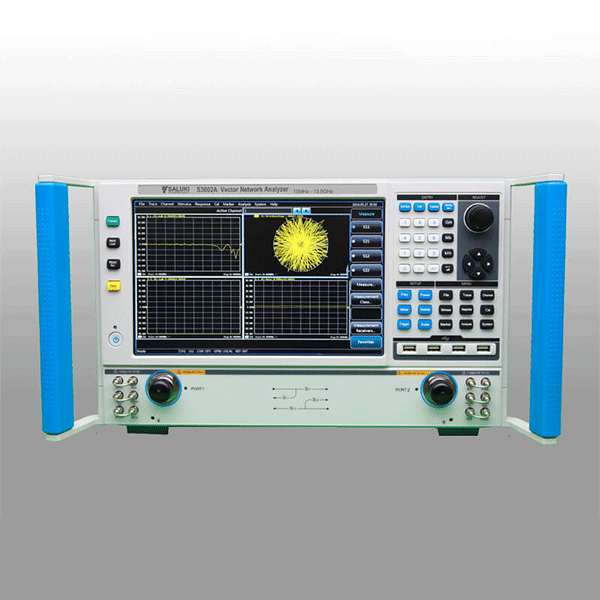

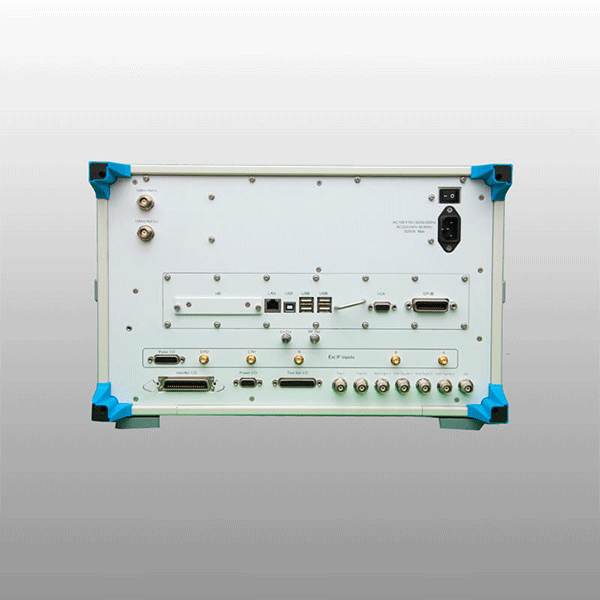

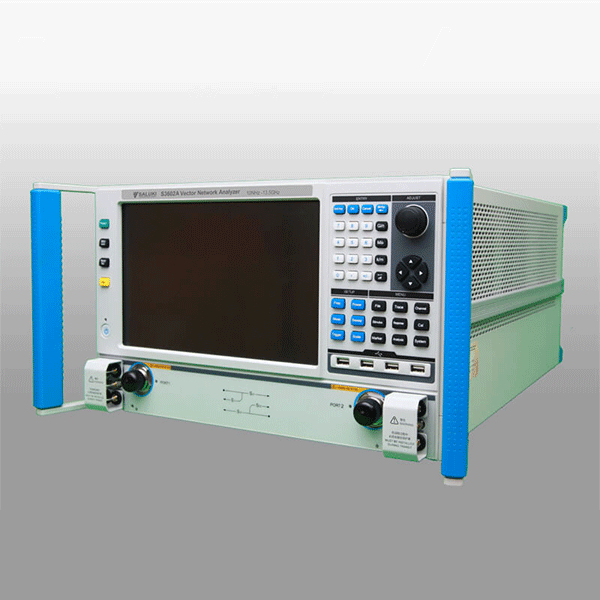

S3602 Series VNA is a top level VNA with excellent specifications. Its frequency ranges from 10MHz to 67GHz. With Saluki frequency extension modules, S3602 can reach up to 325GHz. S3602 has a wide dynamic range, low trace noise, flexible interfaces and friendly UI.
Applications
Technical Specifications
|
Model |
S3602A |
S3602B |
S3602C |
S3602D |
S3602E |
|
Frequency Range |
10MHz - 13.5GHz |
10MHz - 26.5GHz |
10MHz - 43.5GHz |
10MHz - 50GHz |
10MHz - 67GHz |
|
Frequency Resolution |
1Hz |
||||
|
Dynamic Range (@10GHz) |
135 dB |
133 dB |
125 dB |
||
|
Power Scan Range(@10GHz) |
41 dB |
36 dB |
36 dB |
||
|
Output Power(@10GHz) |
14 dBm |
10 dBm |
9 dBm |
||
|
Amplitude Trace Noise (@10GHz) |
0.001 dBrms |
0.001 dBrms |
0.001 dBrms |
||
|
Effective Directivity |
>53 dB |
>42dB |
>42 dB |
||
|
Effective Source Match |
>36 dB |
>33dB |
>33 dB |
||
|
Effective Load Match |
>51 dB |
>51dB |
>51 dB |
||
|
Reflection Tracking |
±0.01 dB |
±0.02 dB |
±0.02 dB |
||
|
Transmission Tracking |
±0.015 dB |
±0.02 dB |
±0.02 dB |
||
|
Number of Built-In Ports |
2 ports (standard) / 4 ports (optional) |
||||
|
IF Bandwidth |
1Hz - 5MHz |
||||
|
Dimension |
463 x 279.5 x 640 mm |
463 x 279.5 x 690 mm |
463 x 281 x 690 mm |
|
Weight |
42 kg |
47 kg |
50 kg |
|
Interface |
3.5 mm (M) |
2.4 mm (M) |
1.85 mm (M) |
|
Impedance |
50 Ω |
||
| No. | Item |
|
201 |
2-Port Programmable Step Attenuator |
|
400 |
4-Port Measurement |
|
401 |
4-Port Programmable Step Attenuator |
|
402 |
Active Inter-modulation Measurement |
|
008 |
Pulse Measurement |
| No. | Item |
| S06 | MiliMeter extension port power control |
|
S10 |
Time Domain Measurement |
|
S80 |
Frequency Offset Measurement |
|
S82 |
Mixer Scalar Measurement |
|
S83 |
Mixer Vector Measurement |
|
S84 |
Embedded Local Oscillator Frequency Converter Measurement |
|
S86 |
Gain Compression Two Dimensional Sweep Measurement |
| No. | Item |
|
SAV31121 |
3.5mm Calibrator Kit |
|
SAV31123 |
2.4mm Calibration Kit |
|
SAV31128 |
1.85mm Calibration Kit |
|
FB0HA0HB025.0 |
3.5mm Test Cable |
|
FB0HA0HC025.0 |
3.5mm Test Cable |
|
FE0BN0BM025.0 |
2.4mm Test Cable |
|
FE0BN0BL025.0 |
2.4mm Test Cable |
|
FF0CN0CM025.0 |
1.85mm Test Cable |
|
FF0CN0CL025.0 |
1.85mm Test Cable |
|
SAV20403 |
Electronic Calibrator Kit |
|
SAV20404 |
Electronic Calibration Kit |
|
SAV20405 |
Electronic Calibrator Kit |
| SAV20409 | Electronic Calibrator Kit |
| SAV87232 | USB Power Probe |
| SAV87232 | USB Power Probe |
| Cables | Extension Module Cable Sets |
| Top Rack | \ |
