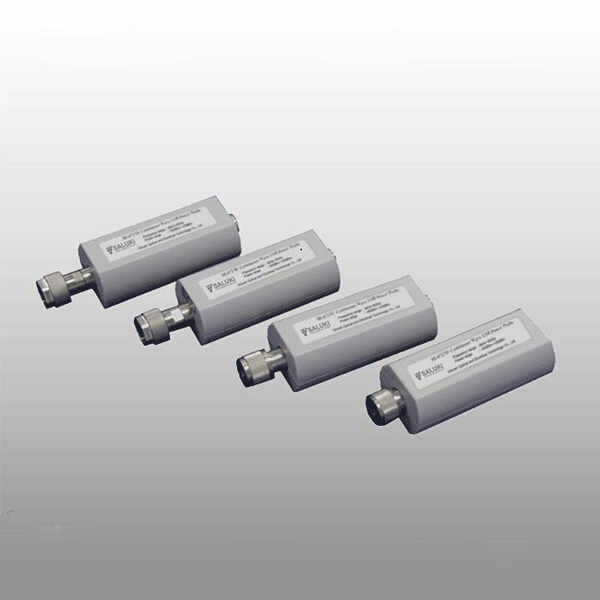

Saluki S8723X series is a diode detector USB power sensor based on a USB 2.0 full-speed/high-speed adaptive interface. It has a wide frequency range and large power dynamic range. It can be connected to a computer or other electronic measuring instruments, easy to set up a power test system, particularly useful for field and other low-cost production line testing and power testing.
Technical Specifications
| Model | S87230 | S87231 | S87232 | S87233 |
| Frequency Range | 9kHz - 6GHz | 10MHz - 18GHz | 50MHz - 26.5GHz | 50MHz - 40GHz |
| Power Range | -50dBm to +20dBm | -60dBm to +20dBm | ||
| Zeroing Accuracy | <=10nW | <=1nW | ||
| Input Port VSWR | 100kHz-6GHz: 1.15 |
10MHz-50MHz: 1.21 50MHz-2GHz: 1.15 2GHz-12.4GHz: 1.20 12.4GHz-18GHz: 1.27 |
50MHz-2GHz: 1.15 2GHz-12.4GHz: 1.20 12.4GHz-18GHz: 1.27 18GHz-26.5GHz: 1.30 |
50MHz-2GHz: 1.15 2GHz-12.4GHz: 1.20 12.4GHz-18GHz: 1.27 18GHz-26.5GHz: 1.30 26.5GHz-40GHz: 1.50 |
| Input Connector | N(m) | N(m) | 3.5mm(m) | 2.4mm(m) |
| Calibration Factor Uncertainly |
±0.16dB |
±0.25dB |
50MHz-18GHz: ±0.25dB 18GHz - 26.5GHz: ±0.35dB |
50MHz-18GHz: ±0.25dB 18GHz - 40GHz: ±0.35dB |
| Linearity Power |
+10dBm to +20dBm: ±0.18dB -40dBm to +10dBm: ±0.14dB -50dBm to -40dBm: ±0.79dB |
+10dBm to +20dBm: ±0.18dB -40dBm to +10dBm: ±0.14dB -50dBm to -40dBm: ±0.39dB -60dBm to -50dBm: ±0.79dB |
||
| Max. Input Power | +23dBm | |||
| Power Supply | Mini USB port | |||
| Power Consumption | <1.8W | |||
| Operating Temp. | 0°C to 50°C | |||
| Storage Temp. | -40°C to 70°C | |||
| Dimension (mm) | 46.2×35.6×142.6 | 46.2×35.6×142.6 | 46.2×35.6×135.4 | 46.2×35.6×125.9 |
| Weight | 250g | |||
Ordering Information
| Part No. | Frequency Range |
| S87230 | 9kHz - 6GHz |
| S87231 | 10MHz - 18GHz |
| S87232 | 50MHz - 26.5GHz |
| S87233 | 50MHz - 40GHz |
