Key Features
Application

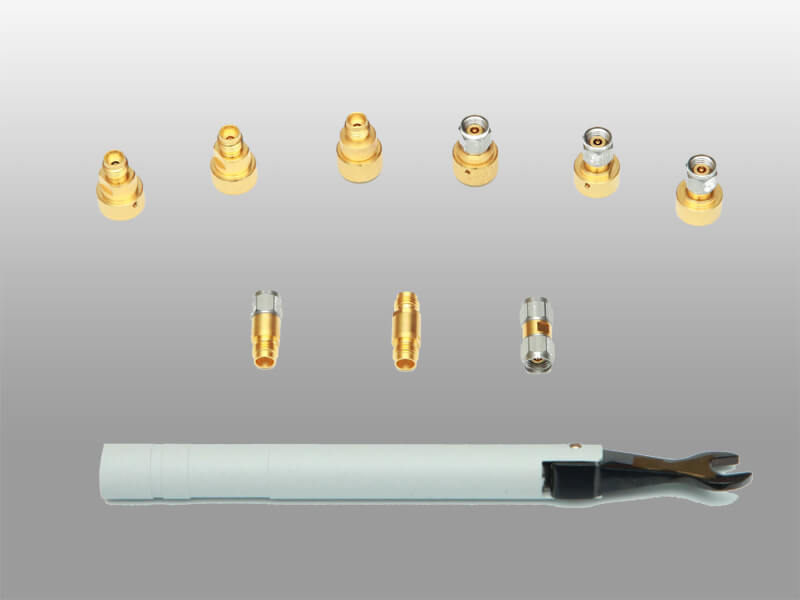

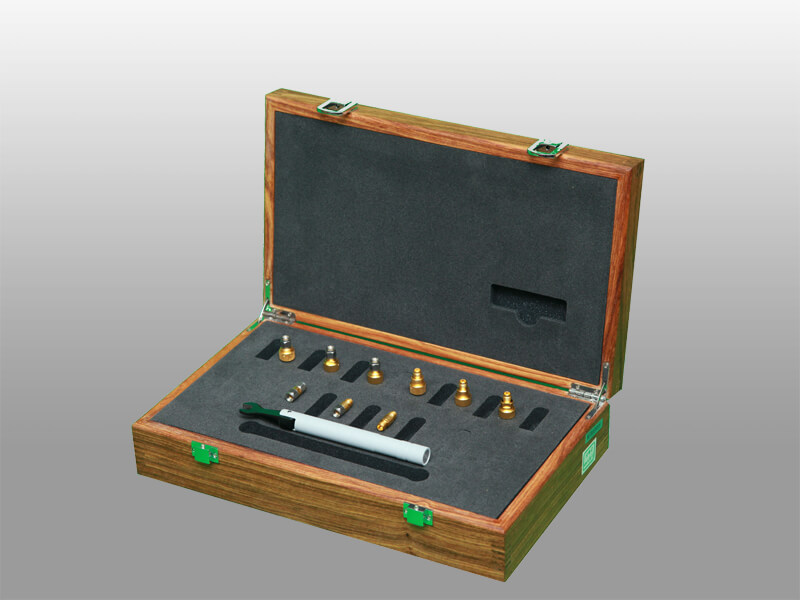

SCKCL67-1.85 mechanical calibration kit contains precision standard devices to calibrate network analyzers in the 1.85mm interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
This calibration kit can use the calibration data of 85058B.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL67-1.85 (Calibration Level) |
DC - 67GHz | Open: ±2.0° Short: ±2.0° Load: VSWR<1.15 Adaptor: VSWR<1.25 |
Open: 1.85mm (M) | 1 |
| Open: 1.85mm (F) | 1 | |||
| Short: 1.85mm (M) | 1 | |||
| Short: 1.85mm (F) | 1 | |||
| Load: 1.85mm (M) | 1 | |||
| Load: 1.85mm (F) | 1 | |||
| 1.85mm(f) - 1.85mm(f) adaptor | 1 | |||
| 1.85mm(m) - 1.85mm(m) adaptor | 1 | |||
| 1.85mm(m) - 1.85mm(f) adaptor | 1 | |||
| Torque wrench | 1 |
