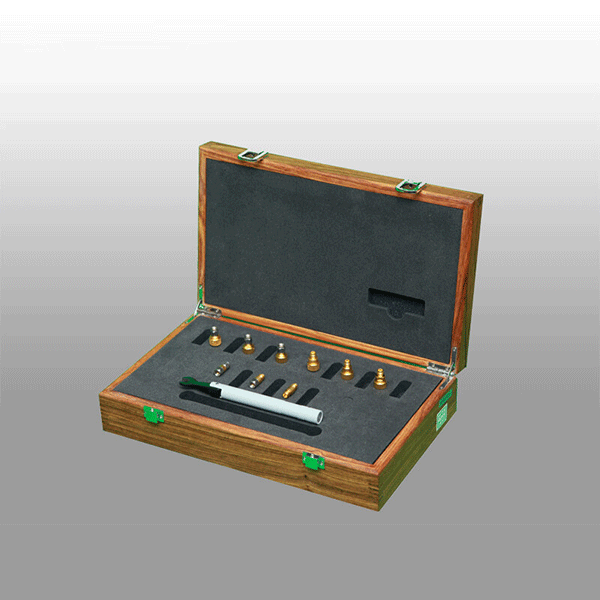

SCK7.5-7/16-L29 mechanical calibration kit contains precision standard devices to calibrate network analyzers in the 7/16 (L29) interface. This kit also contains adapters to change the sex of the test port.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCK7.5-7/16-L29 |
DC - 7.5GHz | Open: ±3.0° Short: ±2.5° Load: VSWR<1.055 (DC - 4GHz), VSWR<1.065 (4 - 7.5GHz) Adaptor:
VSWR<1.065 (DC - 4GHz), VSWR<1.18 (4 - 7.5GHz)
|

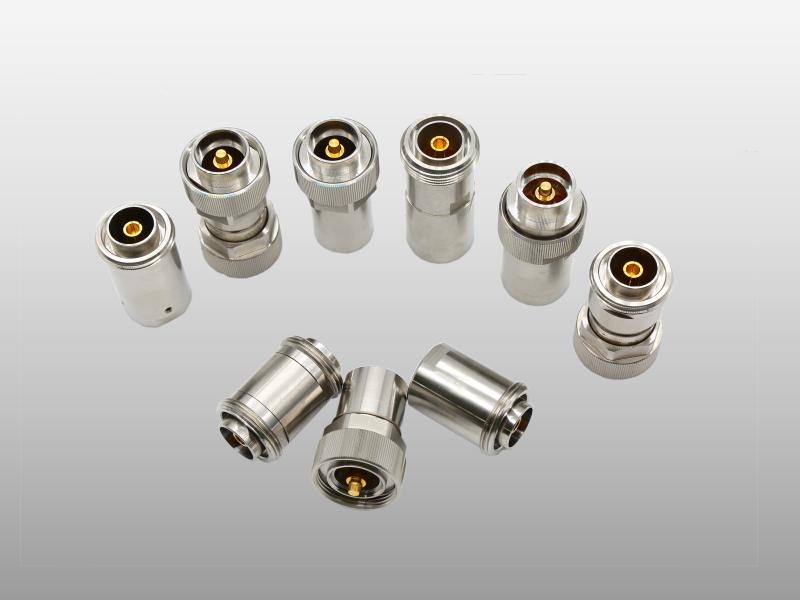

Open: 7/16 (M) | 1 |
| Open: 7/16 (F) | 1 | |||
| Short: 7/16 (M) | 1 | |||
| Short: 7/16 (F) | 1 | |||
| Load: 7/16 (M) | 1 | |||
| Load: 7/16 (F) | 1 | |||
| 7/16(f) - 7/16(f) adaptor | 1 | |||
| 7/16(m) - 7/16(m) adaptor | 1 | |||
| 7/16(m) - 7/16(f) adaptor | 1 |
