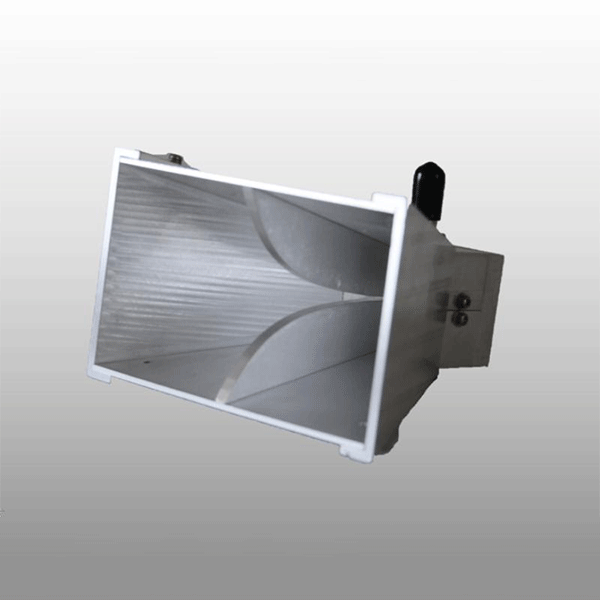

Saluki DA89902 horn antenna has the characteristics of high directivity, low cutoff frequency of the main mode, and wide frequency band of operation.
Key Features
Applications
| Model | DA89902 |
| Frequency range |
18GHz - 40GHz |
| Nominal impedance | 50Ω |
| VSWR |
18GHz - 26.5GHz: <= 2.5 26.5GHz - 40GHz: <= 4.8 |
| Gain |
18GHz - 26.5GHz: >= 3dBi 26.5GHz - 40GHz: >= 5dBi |
| Connector | 2.92mm(f) |
| Size | 130×100×80 mm |
| Weight | 1kg |
