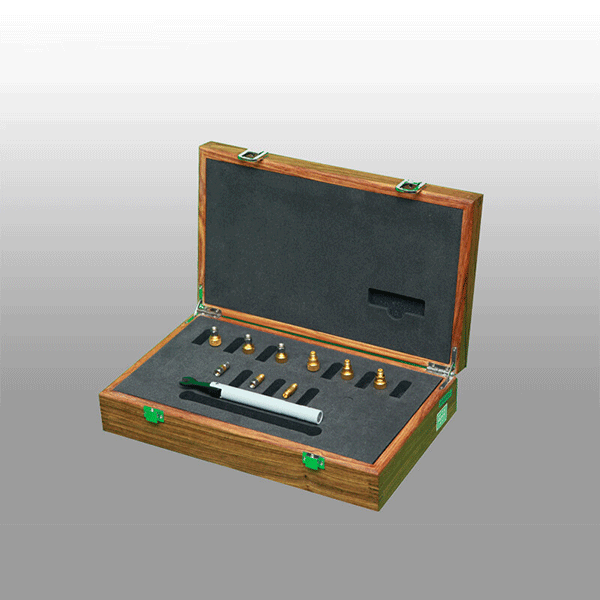

SCKCL40-2.4 mechanical calibration kit contains precision standard devices to calibrate network analyzers in the 2.4mm interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL40-2.4 (Calibration Level) |
DC - 40GHz | Open: ±1.5° Short: ±1.5° Load: VSWR<1.105 Adaptor: VSWR<1.119 |
Open: 2.4mm (M) | 1 |
| Open: 2.4mm (F) | 1 | |||
| Short: 2.4mm (M) | 1 | |||
| Short: 2.4mm (F) | 1 | |||
| Load: 2.4mm (M) | 1 | |||
| Load: 2.4mm (F) | 1 | |||
| 2.4mm(f) - 2.4mm(f) adaptor | 1 | |||
| 2.4mm(m) - 2.4mm(m) adaptor | 1 | |||
| 2.4mm(m) - 2.4mm(f) adaptor | 1 | |||
| Torque wrench | 1 |
