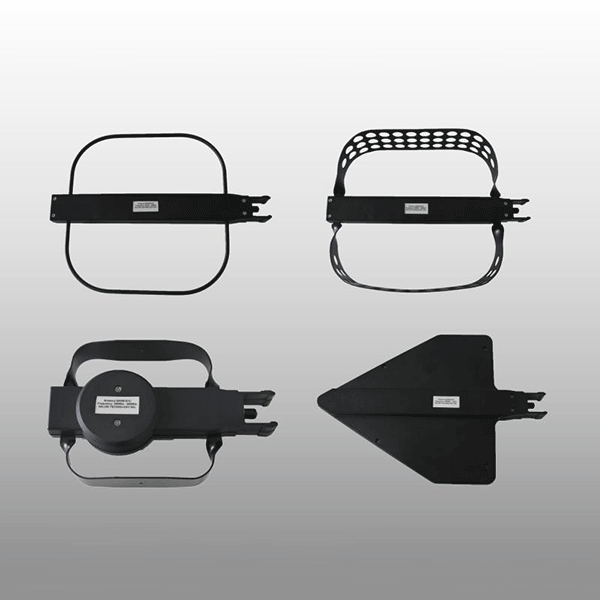

Saluki DA89101 series handheld directional antenna has the features of small size, light weight, compact structure and easy to carry. In the frequency range of 20MHz - 4GHz, it can be used for horizontally polarized and vertically polarized signals. The switches can control the antenna to work in passive mode and active mode respectively.
Key Features
Applications
 |

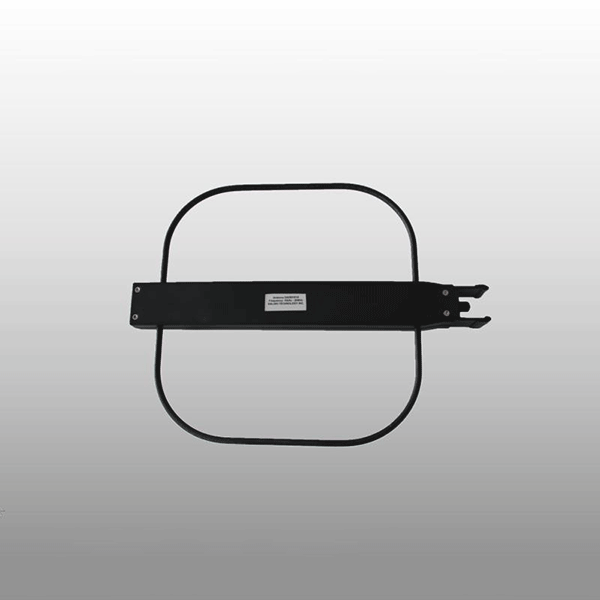

DA89101A |
Frequency range: 10kHz - 20MHz Nominal impedance: 50Ω VSWR: <= 2.5 Gain: >= -68dBi Size: 450×350×50 mm Weight: 0.8kg |
 |

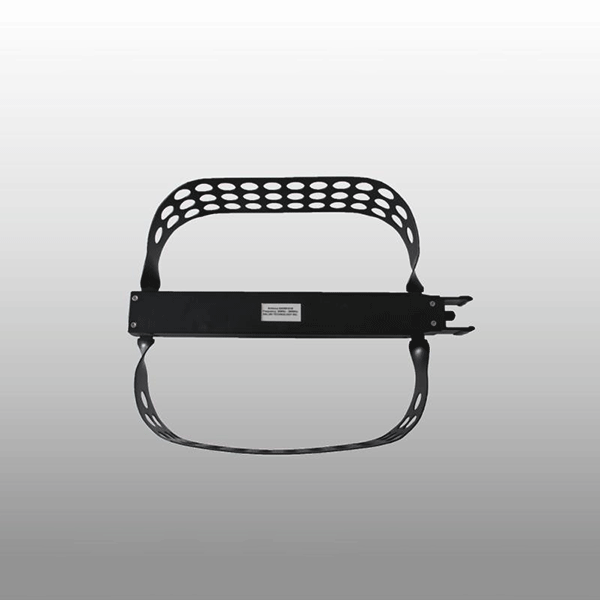

DA89101B | Frequency range: 20MHz - 200MHz
Nominal impedance: 50Ω VSWR: <= 2.5 Gain: >= -65dBi Size: 450×350×120 mm Weight: 0.9kg |
 |

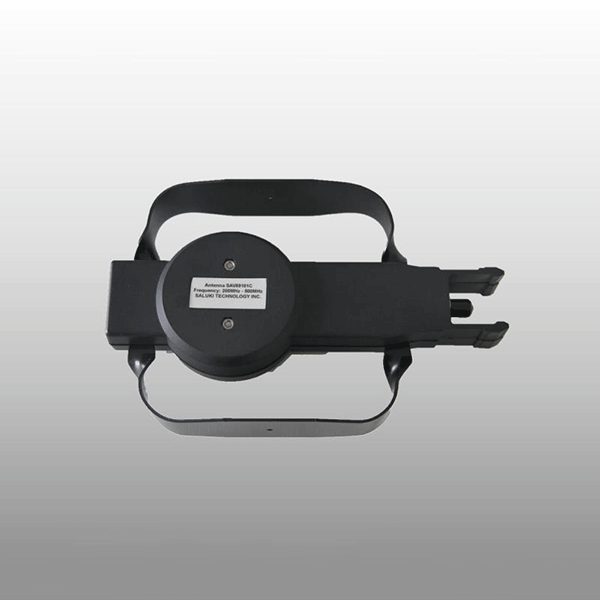

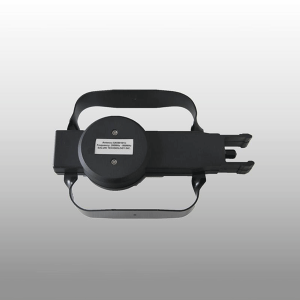

DA89101C |
Frequency range: 200MHz - 500MHz Nominal impedance: 50Ω VSWR: <= 2.5 Gain: >= -18dBi Size: 250×200×80 mm Weight: 0.7kg |
 |

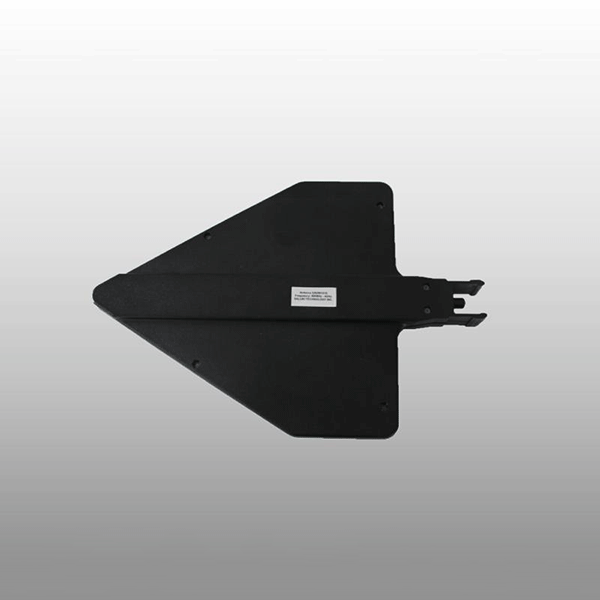

DA89101D |
Frequency range: 500MHz - 4GHz Nominal impedance: 50Ω VSWR: <= 2.5 (500MHz - 3GHz) <= 3.5 (3GHz - 4GHz) Gain: >= -10dBi Size: 450×350×80 mm Weight: 0.9kg |
 |
AA89401 Antenna Amplifier | Frequency range: 10kHz - 4GHz
Nominal impedance: 50Ω Gain: >= 4dBi Insertion loss: <= 7dB Connector: N(f) Size: 500×350×80 mm Weight: 0.9kg |
Note: DA89101 series antennas need to be used with antenna amplifier.
