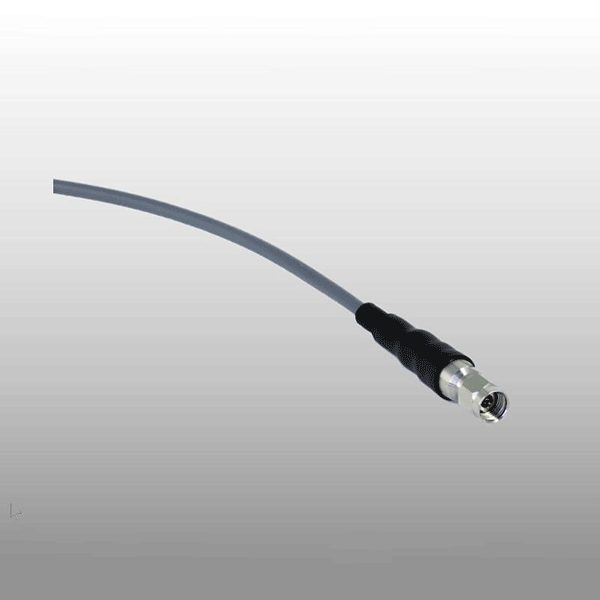

Saluki Phase and Amplitude stable RF Testing cable has the characteristics of good flexibility, light weight and small space. It can be used for any high frequency signal transmission between systems or instruments where low loss and stability are critical. SCA cables are available with a wide range of connectors offering excellent specifications.
Key Features
Applications
Technical Specifications
| Part Number | Frequency Range | Connector A | Connector B | Length | Insertion Loss | VSWR |
Amplititude Stability |
Phase Stability |
| SCA9696A-J9NL24 | DC - 26.5GHz | SMA (M) | SMA (M) | 24 inch | 1.16 | 1.25 | ±0.1 | ±4° |
| SCA9696A-J9NL36 | DC - 26.5GHz | SMA (M) | SMA (M) | 36 inch | 1.56 | 1.25 | ±0.1 | ±4° |
| SCA9696A-J9NL48 | DC - 26.5GHz | SMA (M) | SMA (M) | 48 inch | 1.96 | 1.25 | ±0.1 | ±4° |
| SCA7676A-J7NL24 | DC - 40GHz | 2.92mm (M) | 2.92mm (M) | 24 inch | 1.94 | 1.25 | ±0.1 | ±5° |
| SCA7676A-J7NL36 | DC - 40GHz | 2.92mm (M) | 2.92mm (M) | 36 inch | 2.72 | 1.25 | ±0.1 | ±5° |
| SCA7676A-J7NL48 | DC - 40GHz | 2.92mm (M) | 2.92mm (M) | 48 inch | 3.50 | 1.25 | ±0.1 | ±5° |
| SCA8686A-J0NL24 | DC - 50GHz | 2.4mm (M) | 2.4mm (M) | 24 inch | 2.76 | 1.25 | ±0.1 | ±5° |
| SCA8686A-J0NL36 | DC - 50GHz | 2.4mm (M) | 2.4mm (M) | 36 inch | 3.86 | 1.25 | ±0.1 | ±5° |
| SCA8686A-J0NL48 | DC - 50GHz | 2.4mm (M) | 2.4mm (M) | 48 inch | 4.96 | 1.25 | ±0.1 | ±5° |
Armour
Naming Rules
Sample:
General Information
| Connector Materials | Body | Stainless steel, Passivated/Au-plated brass |
| Center Conductor | Au-plated beryllium copper | |
| Environmental Data | Operating Temperature | -55°C to +125°C |

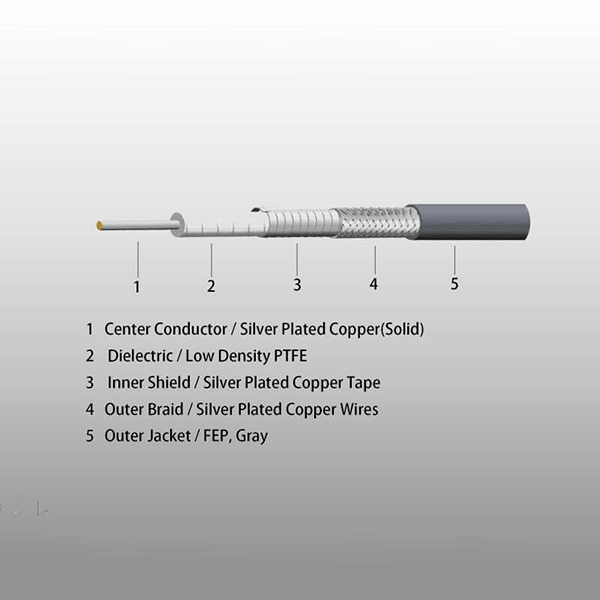

| Cable Descriptions | Center Conductor | Ag-plated Cu |
| Dielectric | PTFE | |
| Outer Conductor | Outer conductor | |
| Inner Braid | Ag-plated copper braid | |
| Outer Jacket | PFA / FEP |
