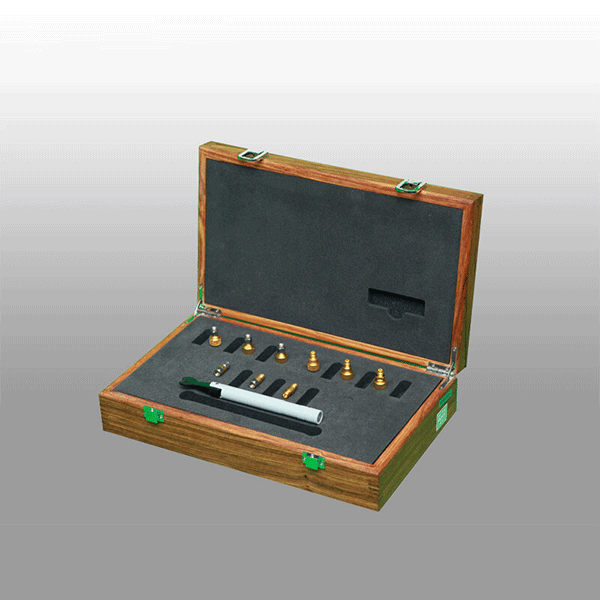

SCKCL50-2.4 (calibration level) and SCKTL50-2.4 (test level) mechanical calibration kit contains precision standard devices to calibrate network analyzers in the 2.4mm interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL50-2.4 (Calibration Level) |
DC - 50GHz | Open: ±2.25° Short: ±2.0° Load: VSWR<1.106 Adaptor: VSWR<1.222 |
Open: 2.4mm (M) | 1 |
| Open: 2.4mm (F) | 1 | |||
| Short: 2.4mm (M) | 1 | |||
| Short: 2.4mm (F) | 1 | |||
| Load: 2.4mm (M) | 1 | |||
| Load: 2.4mm (F) | 1 | |||
| 2.4mm(f) - 2.4mm(f) adaptor | 1 | |||
| 2.4mm(m) - 2.4mm(m) adaptor | 1 | |||
| 2.4mm(m) - 2.4mm(f) adaptor | 1 | |||
| Torque wrench | 1 | |||
|
SCKTL50-2.4 (Test Level) |
0.1 - 50GHz | Open: ±6.0° Short: ±4.5° Load: VSWR<1.17 Adaptor: VSWR<1.15 |
Open: 2.4mm (M) | 1 |
| Open: 2.4mm (F) | 1 | |||
| Short: 2.4mm (M) | 1 | |||
| Short: 2.4mm (F) | 1 | |||
| Load: 2.4mm (M) | 1 | |||
| Load: 2.4mm (F) | 1 | |||
| 2.4mm(f) - 2.4mm(f) adaptor | 1 | |||
| 2.4mm(m) - 2.4mm(m) adaptor | 1 | |||
| 2.4mm(m) - 2.4mm(f) adaptor | 1 | |||
| Torque wrench | 1 |
