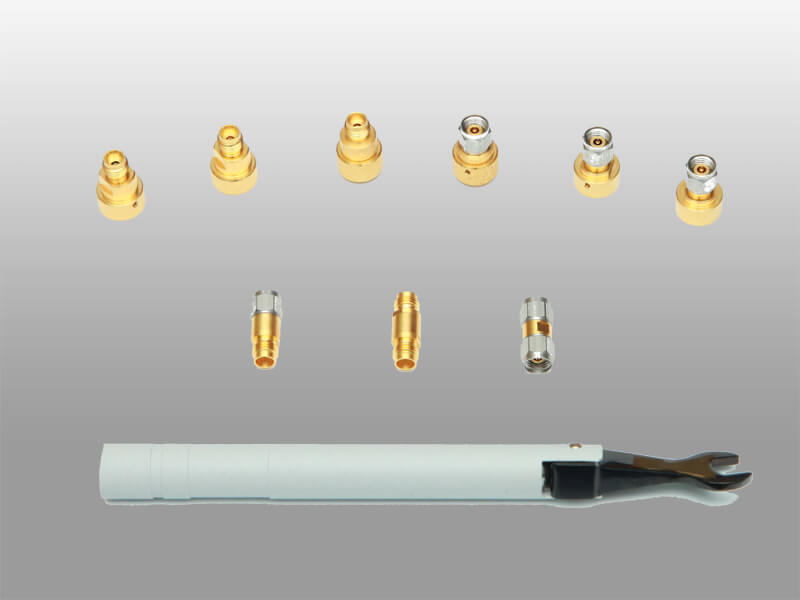

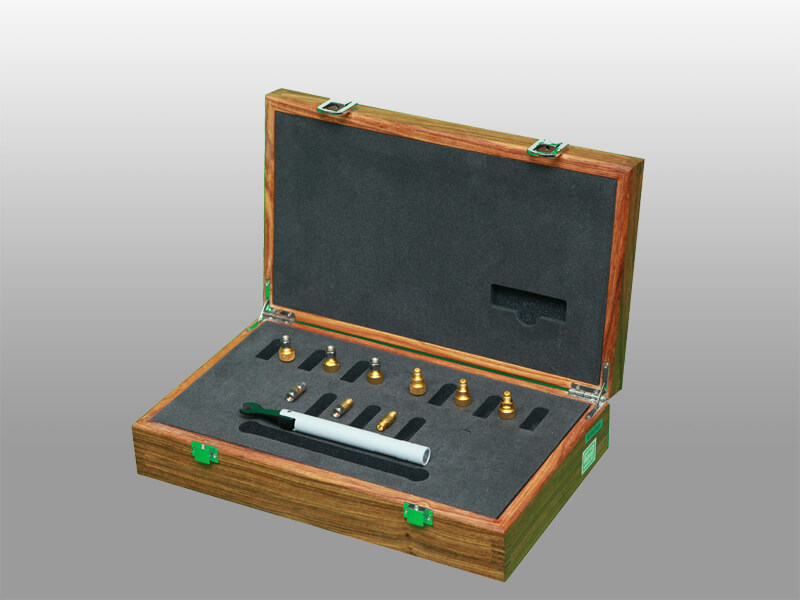

SCKCL40-2.92 (calibration level) mechanical calibration kit contains precision standard devices to calibrate network analyzers in the 2.92mm interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL40-2.92 (Calibration Level) |
DC - 40GHz | Open: ±6.0° Short: ±4.5° Load: VSWR<1.17 Adaptor: VSWR<1.12 |
Open: 2.92mm (M) | 1 |
| Open: 2.92mm (F) | 1 | |||
| Short: 2.92mm (M) | 1 | |||
| Short: 2.92mm (F) | 1 | |||
| Load: 2.92mm (M) | 1 | |||
| Load: 2.92mm (F) | 1 | |||
| 2.92mm(f) - 2.92mm(f) adaptor | 1 | |||
| 2.92mm(m) - 2.92mm(m) adaptor | 1 | |||
| 2.92mm(m) - 2.92mm(f) adaptor | 1 | |||
| 2.92mm torque wrench | 1 |
