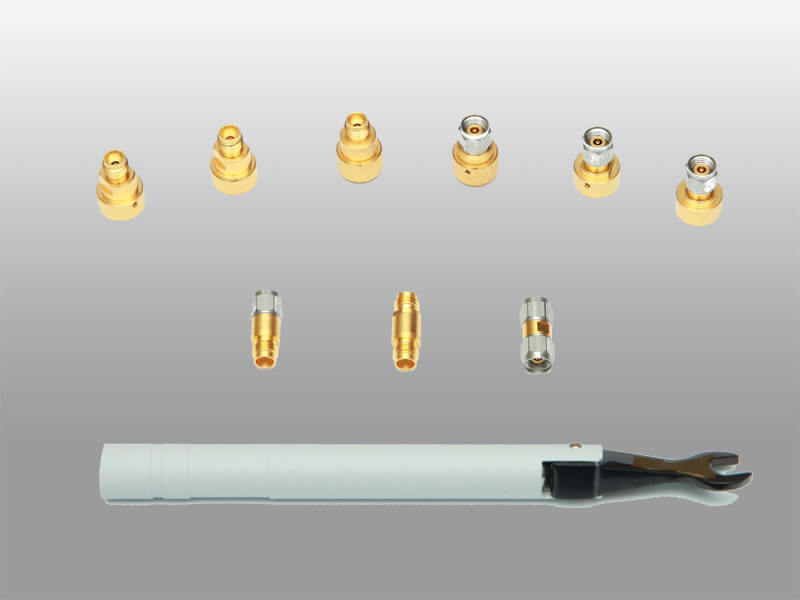

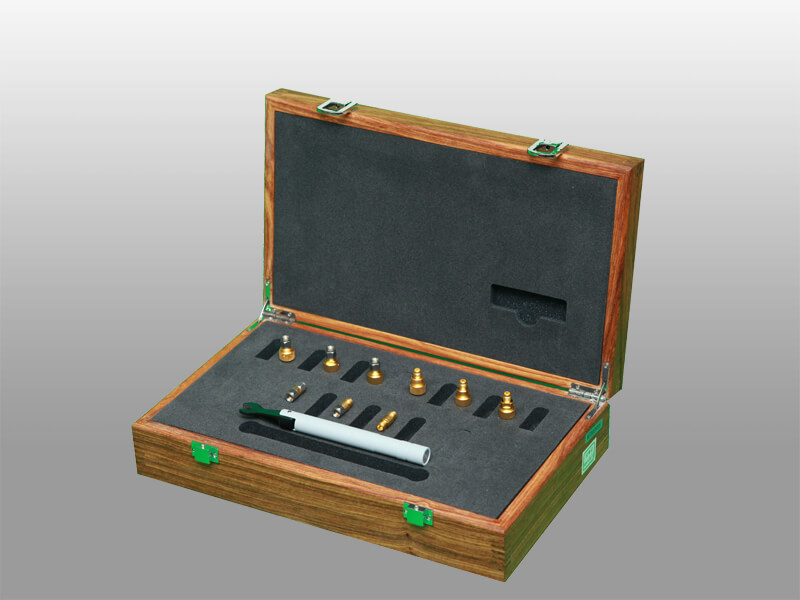

SCKCL26-3.5 (calinration level) and SCKTL26-3.5 (test level) mechanical calibration kit contain precision standard devices to calibrate network analyzers in the 3.5mm interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
This calibration kit can use the calibration data of 85052D.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL26-3.5 (Calibration Level) |
DC - 26.5GHz | Open: ±1.5° Short: ±1.5° Load: VSWR<1.055 Adaptor: VSWR<1.106 |
Open: 3.5mm (M) | 1 |
| Open: 3.5mm (F) | 1 | |||
| Short: 3.5mm (M) | 1 | |||
| Short: 3.5mm (F) | 1 | |||
| Load: 3.5mm (M) | 1 | |||
| Load: 3.5mm (F) | 1 | |||
| 3.5mm(f) - 3.5mm(f) adaptor | 1 | |||
| 3.5mm(m) - 3.5mm(m) adaptor | 1 | |||
| 3.5mm(m) - 3.5mm(f) adaptor | 1 | |||
| 3.5mm torque wrench | 1 | |||
|
SCKTL26-3.5 (Test Level) |
DC - 26.5GHz | Open: ±2.0° Short: ±2.0° Load: VSWR<1.065 Adaptor: VSWR<1.12 |
Open: 3.5mm (M) | 1 |
| Open: 3.5mm (F) | 1 | |||
| Short: 3.5mm (M) | 1 | |||
| Short: 3.5mm (F) | 1 | |||
| Load: 3.5mm (M) | 1 | |||
| Load: 3.5mm (F) | 1 | |||
| 3.5mm(f) - 3.5mm(f) adaptor | 1 | |||
| 3.5mm(m) - 3.5mm(m) adaptor | 1 | |||
| 3.5mm(f) - 3.5mm(m) adaptor | 1 | |||
| 3.5mm torque wrench | 1 |
