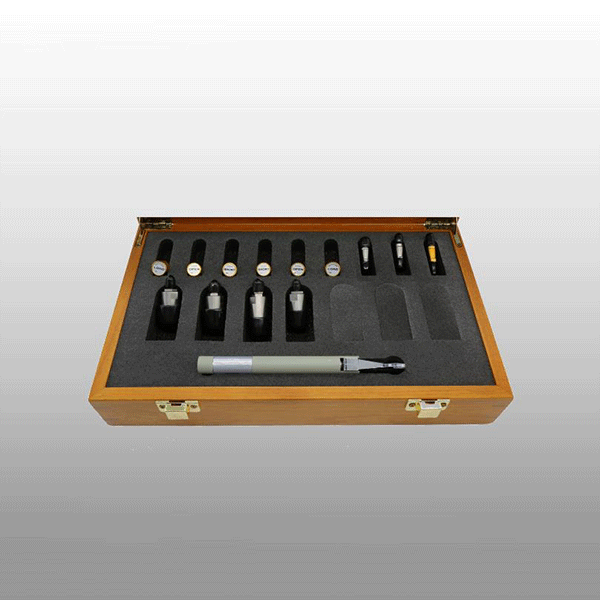

SCKCL06-3.5 mechanical calibration kit contains precision standard devices to calibrate network analyzers in the 3.5mm interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL06-3.5 (Calibration Level) |
DC - 6GHz | Open: ±0.85° Short: ±0.55° Load: VSWR<1.029 Adaptor: VSWR<1.04 |
Open: 3.5mm (M) | 1 |
| Open: 3.5mm (F) | 1 | |||
| Short: 3.5mm (M) | 1 | |||
| Short: 3.5mm (F) | 1 | |||
| Load: 3.5mm (M) | 1 | |||
| Load: 3.5mm (F) | 1 | |||
| 3.5mm(f) - 3.5mm(f) adaptor | 1 | |||
| 3.5mm(m) - 3.5mm(m) adaptor | 1 | |||
| 3.5mm(m) - 3.5mm(f) adaptor | 1 | |||
| N(m) - 3.5mm(m) adaptor | 1 | |||
| N(m) - 3.5mm(f) adaptor | 1 | |||
| N(f) - 3.5mm(m) adaptor | 1 | |||
| N(f) - 3.5mm(f) adaptor | 1 | |||
| 3.5mm torque wrench | 1 |
