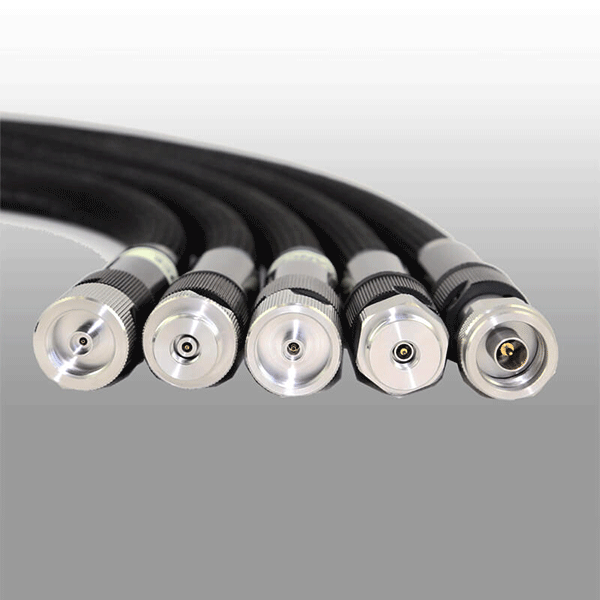

Saluki VNA Microwave/RF Test Cable Assemblies are specifically engineered to provide the most precise VNA measurements in laboratory conditions. They deliver the highest accuracy and greatest time interval between recalibrations of any test assembly on the market today.
Saluki VNA Microwave/RF Test Cable Assemblies are specifically engineered to provide the most precise VNA measurements in laboratory conditions. They deliver the highest accuracy and greatest time interval between recalibrations of any test assembly on the market today.
Saluki's cable assemblies maintain excellent insertion loss and VSWR. Before shipment, we test all of our assemblies for return loss, insertion loss, phase stability and loss stability up to their maximum operating frequency.
Our assemblies ensure accurate and repeatable measurements because of their phase and amplitude stability guaranteed with flexure-tested for over 100,000 flex cycles before we retest phase and amplitude stability.
| Saluki Model | Frequency (GHz) | VNA End | DUT End | VSWR | Insertion Loss (dB) | Phase Stability (degree) | Amplitude Stability (dB) | Length |
| SCAVNA67FM-(1.85/1.85) | DC - 67GHz | NMD 1.85mm Female | NMD 1.85mm Male | <1.40:1 | <5.2dB | <±3.0° | <±0.05dB | 63cm (24.8 inch) |
| SCAVNA67FF-(1.85/1.85) | 1.85mm Female |
