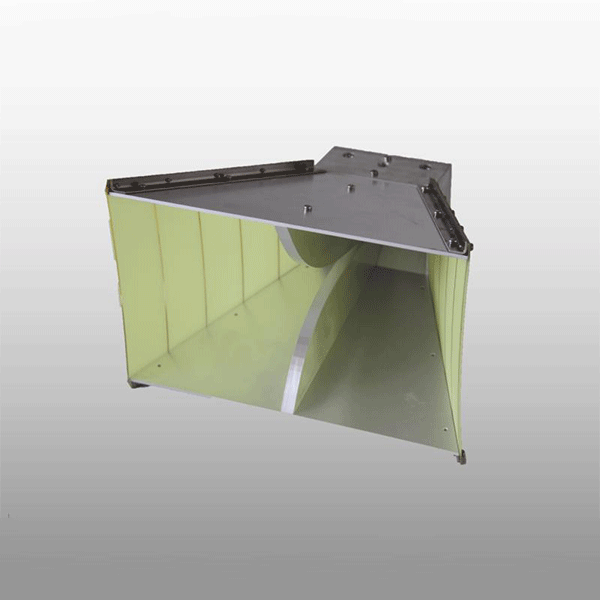

Saluki DA89901 horn antenna has the characteristics of high directivity, low cutoff frequency of the main mode, and wide frequency band of operation.
Key Features
Applications
| Model | DA89901 |
| Frequency range |
1GHz - 18GHz |
| Nominal impedance | 50Ω |
| VSWR |
1GHz - 4GHz: <= 2.8 4GHz - 14GHz: <= 2.5 14GHz - 18GHz: <= 2.8 |
| Gain |
1GHz - 4GHz: >= 3dBi 4GHz - 14GHz: >= 7dBi 14GHz - 18GHz: >= 6dBi |
| Connector | N(f) |
| Size | 280×250×180 mm |
| Weight | 3kg |
