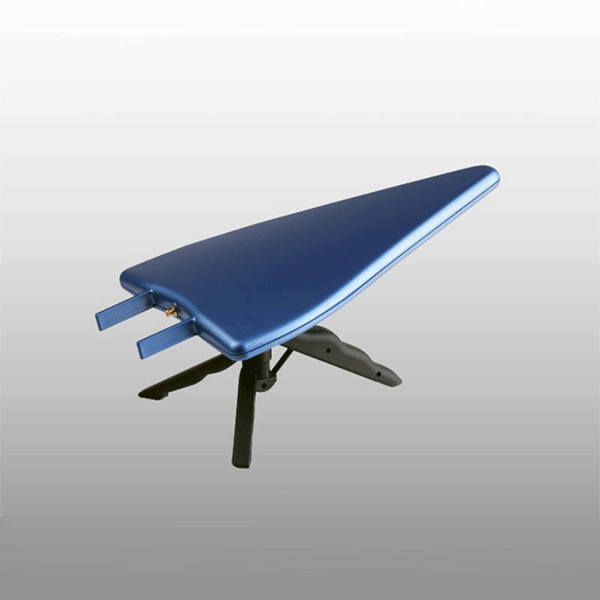

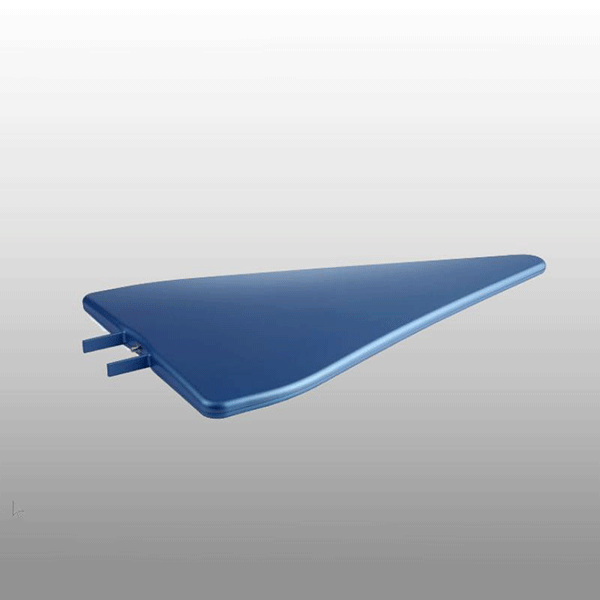

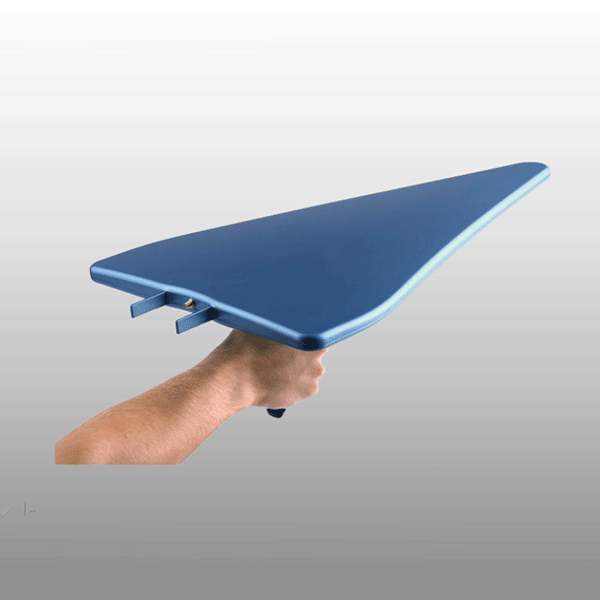

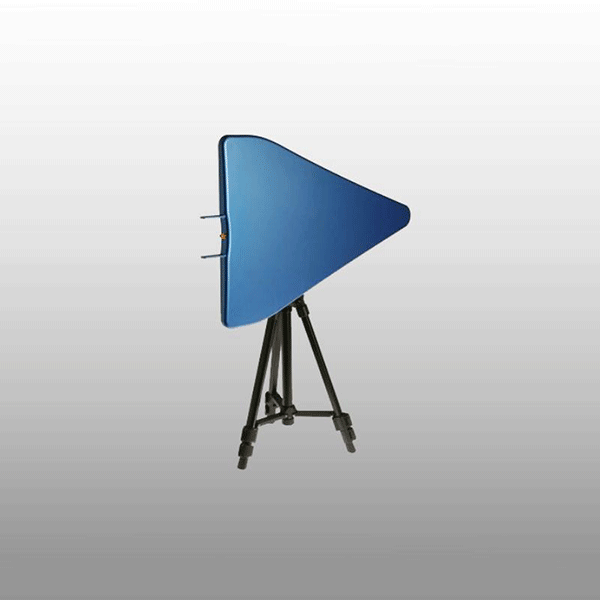

Saluki Hyper LogPer series active directional antenna, based on the innovative, has the lower frequency range now reaches down to 380MHz, thus covering the important TETRA band. The extended upper frequency range now also allows the detection of unusable signal sources like military radar, various satellite services, very high frequency bugs, etc.
Key Features
Applications
| DA4040X |
Frequency range: 400MHz - 4GHz Nominal impedance: 50Ω VSWR: < 1:2 Gain: 44dBi Connector: SMA(f) or N with adapter Size: 640×360×30 mm Weight: 1.4kg |
| DA4060X | Frequency range: 400MHz - 6GHz
Nominal impedance: 50Ω VSWR: < 1:2 Gain: 45dBi Connector: SMA(f) or N with adapter
Size: 640×360×30 mm Weight: 1.4kg |
| DA30100X |
Frequency range: 380MHz - 10GHz Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 44dBi Connector: SMA(f) or N with adapter Size: 640×360×30 mm Weight: 1.4kg |
| DA30200X |
Frequency range: 380MHz - 20GHz Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 19dBi Connector: SMA(f) or N with adapter Size: 640×360×30 mm Weight: 1.4kg |
