Key Features
Applications

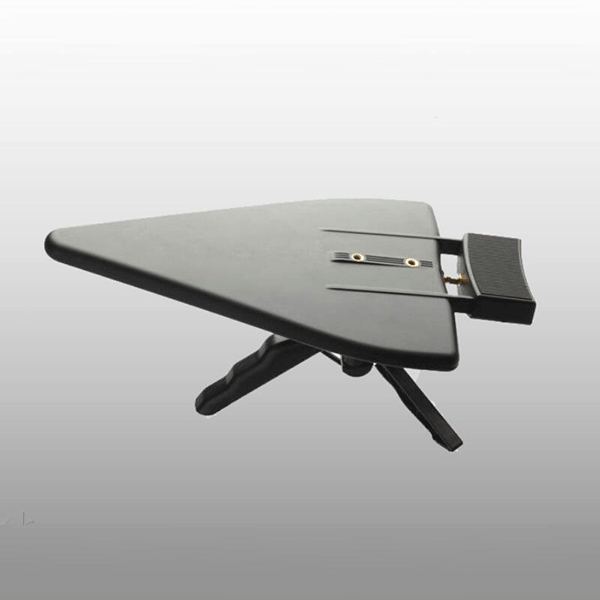

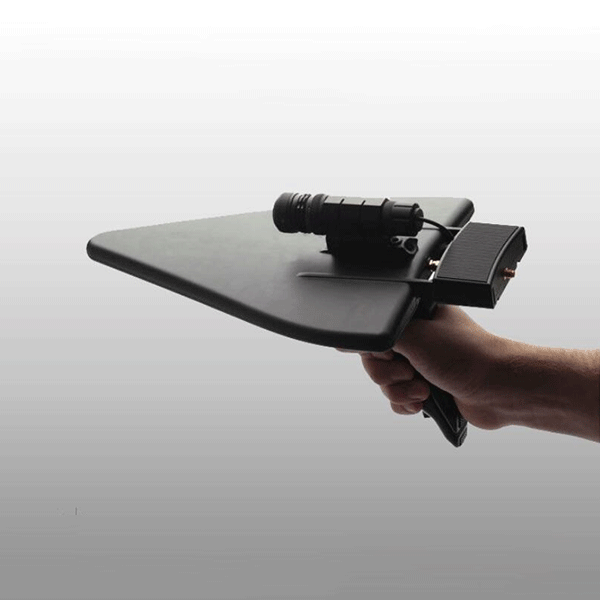

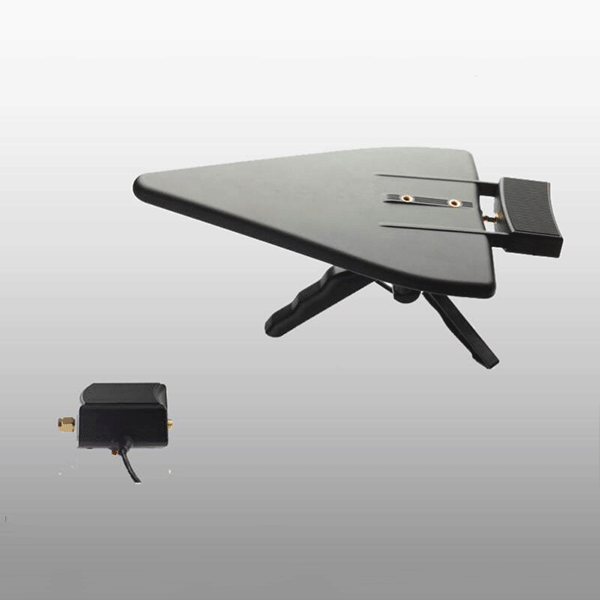

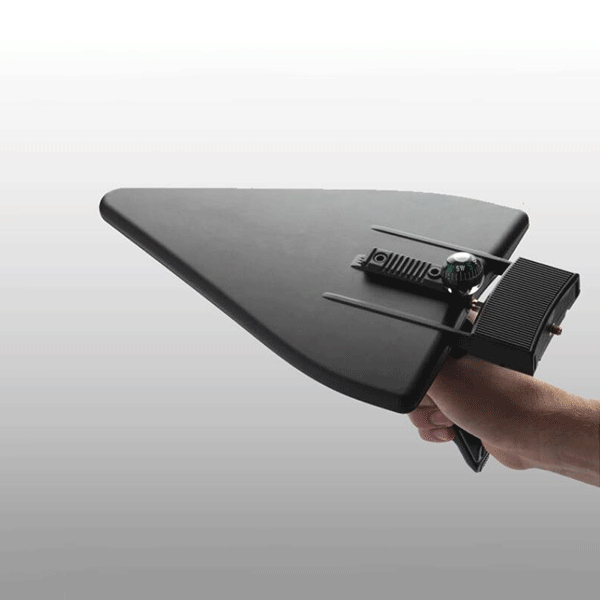

Saluki Hyper LogPer series active directional antenna has the higher frequency range up to 20GHz. Its small physical antenna-size and low weight make this antenna predestined for mobile use. The frequency range now also allows the detection of unusable signal sources like military radar, various satellite services, very high frequency bugs, etc.
Key Features
Applications
| DA7040X |
Frequency range: 700MHz - 4GHz Nominal impedance: 50Ω VSWR: < 1:2 Gain: 44dBi Connector: SMA(f) or N with adapter Size: 390×200×25 mm Weight: 0.4kg |
| DA7060X | Frequency range: 700MHz - 6GHz
Nominal impedance: 50Ω VSWR: < 1:2 Gain: 45dBi Connector: SMA(f) or N with adapter
Size: 390×200×25 mm Weight: 0.4kg |
| DA60100X |
Frequency range: 680MHz - 10GHz Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 45dBi Connector: SMA(f) or N with adapter Size: 390×200×25 mm Weight: 0.4kg |
| DA60200X |
Frequency range: 680MHz - 20GHz Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 19dBi Connector: SMA(f) or N with adapter Size: 390×200×25 mm Weight: 0.4kg |
