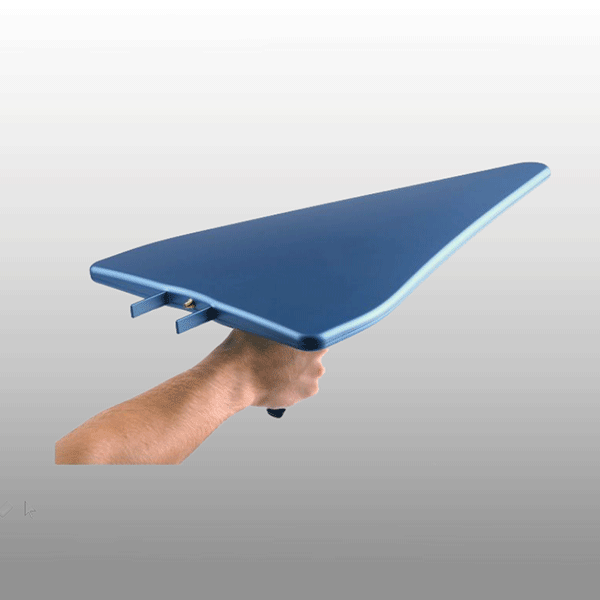

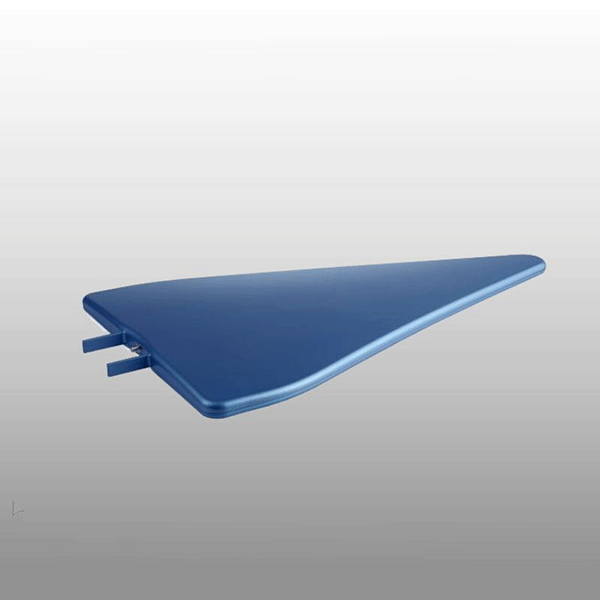

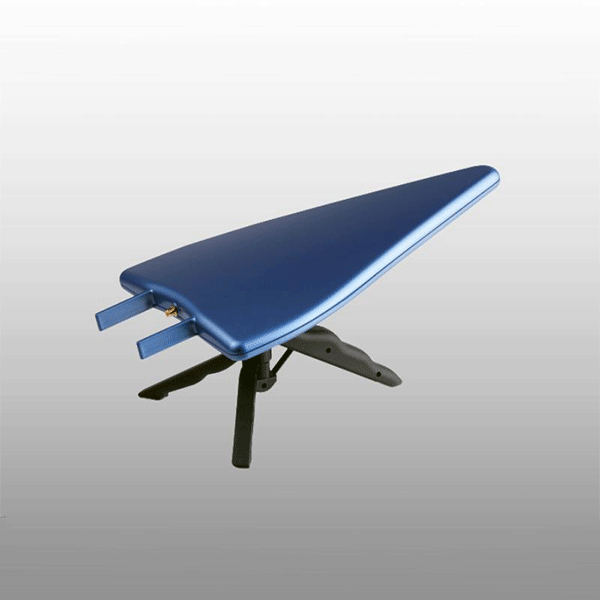

Saluki Hyper LogPer series passive directional antenna has the higher frequency range up to 35GHz which covers directional radio, miscellaneous satellite applications etc.. It is optimal for usage with spectrum analyzers or TSCM receiver. And it is suitable for using in the lab and open-field application.field-strength and EMC measurements
Key Features
Applications
| PDA7040 |
Frequency range: 700MHz - 4GHz Nominal impedance: 50Ω VSWR: < 1:2 Gain: 4dBi Max. transmission power: 100W CW (400MHz) Connector: SMA(f) or N with adapter Size: 340×200×25 mm Weight: 0.27kg |
| PDA7060 | Frequency range: 700MHz - 6GHz
Nominal impedance: 50Ω VSWR: < 1:2 Gain: 5dBi
Max. transmission power: 100W CW (400MHz) Connector: SMA(f) or N with adapter
Size: 340×200×25 mm Weight: 0.25kg |
| PDA60100 |
Frequency range: 680MHz - 10GHz Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 5dBi
Max. transmission power: 100W CW (400MHz) Connector: SMA(f) or N with adapter Size: 340×200×25 mm Weight: 0.25kg |
| PDA60180 |
Frequency range: 680MHz - 18GHz Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 5dBi
Max. transmission power: 100W CW (400MHz) Connector: SMA(f) or N with adapter Size: 340×200×25 mm Weight: 0.25kg |
| PDA60250 |
Frequency range: 680MHz - 25GHz Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 5dBi
Max. transmission power: 100W CW (400MHz) Connector: SMA(f) or N with adapter Size: 340×200×25 mm Weight: 0.25kg |
| PDA60350 | Frequency range: 680MHz - 35GHz
Nominal impedance: 50Ω VSWR: < 1:2.5 Gain: 5dBi
Max. transmission power: 100W CW (400MHz) Connector: SMA(f) or N with adapter Size: 340×200×25 mm Weight: 0.25kg
|
