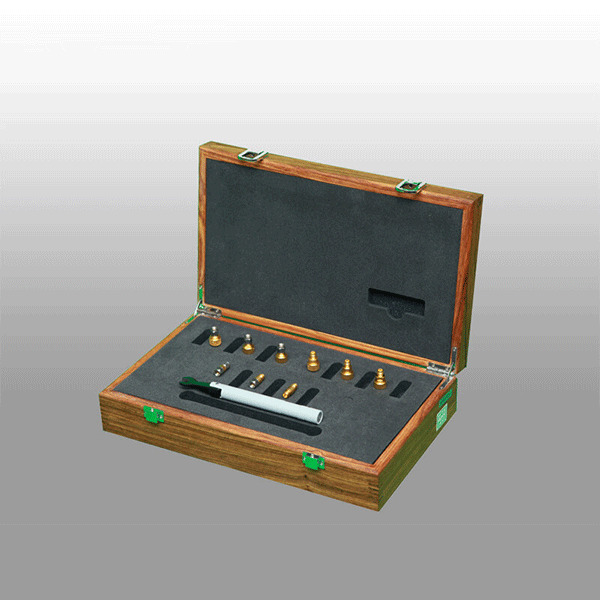

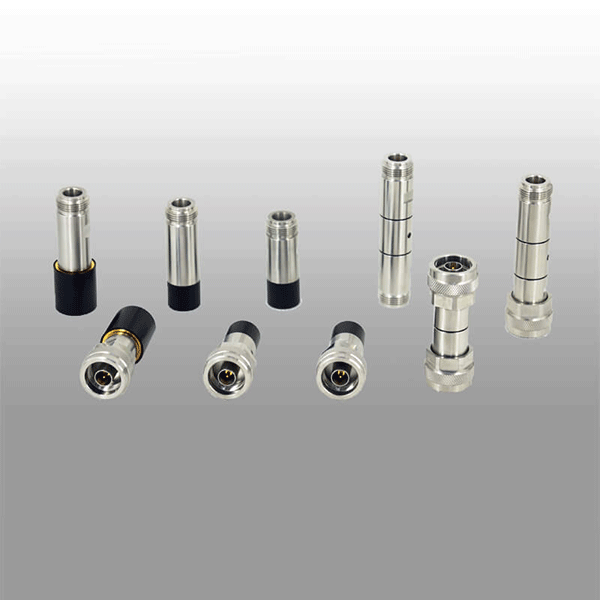

SCKCL18-N (calibration level) and SCKTL18-N (test level) mechanical calibration kit contain precision standard devices to calibrate network analyzers in the N-type interface. This kit also contains adapters to change the sex of the test port, and a torque wrench to ensure a repeatable reliable connection.
Key Features
Application
| Model | Frequency | Spec. | List | Qty. |
|
SCKCL18-N (Calibration Level) |
DC - 18GHz | Open: ±1.5° Short: ±1.5° Load: VSWR<1.055 Adaptor: VSWR<1.083 |
Open: N (M) | 1 |
| Open: N (F) | 1 | |||
| Short: N (M) | 1 | |||
| Short: N (F) | 1 | |||
| Load: N (M) | 1 | |||
| Load: N (F) | 1 | |||
| N(f) - N(f) adaptor | 1 | |||
| N(m) - N(m) adaptor | 1 | |||
| 7mm - N(f) adaptor | 1 | |||
| 7mm - N(m) adaptor | 1 | |||
| N- type torque wrench | 1 | |||
| Hook spanner | 1 | |||
|
SCKTL18-N (Test Level) |
0.05 - 18GHz | Open: ±3.0° Short: ±2.5° Load: VSWR<1.08 Adaptor: VSWR<1.1 |
Open: N (M) | 1 |
| Open: N (F) | 1 | |||
| Short: N (M) | 1 | |||
| Short: N (F) | 1 | |||
| Load: N (M) | 1 | |||
| Load: 3N (F) | 1 | |||
| N(f) - N(f) adaptor | 1 | |||
| N(m) - N(m) adaptor | 1 | |||
| 7mm - N(f) adaptor | 1 | |||
| 7mm - N(m) adaptor | 1 | |||
| N- type torque wrench | 1 |
