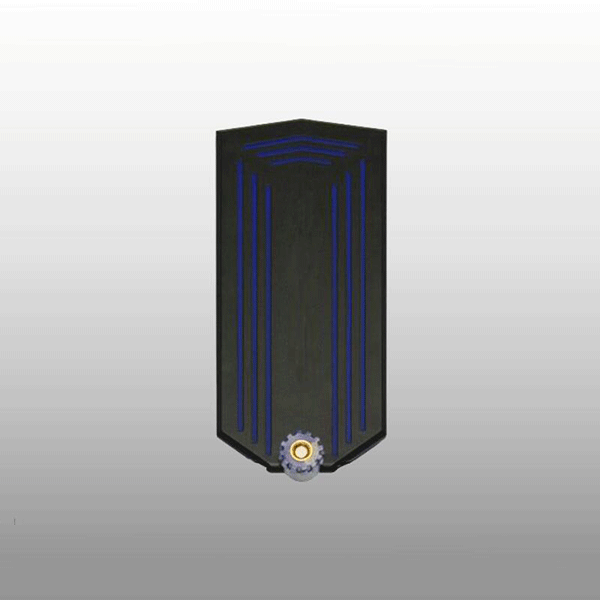

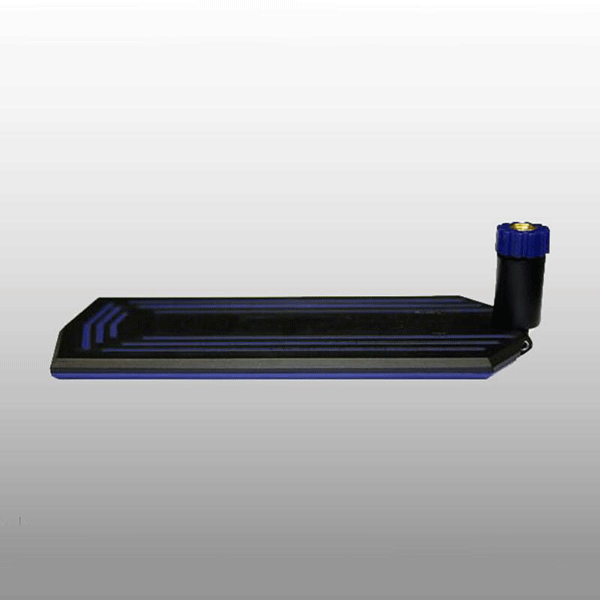

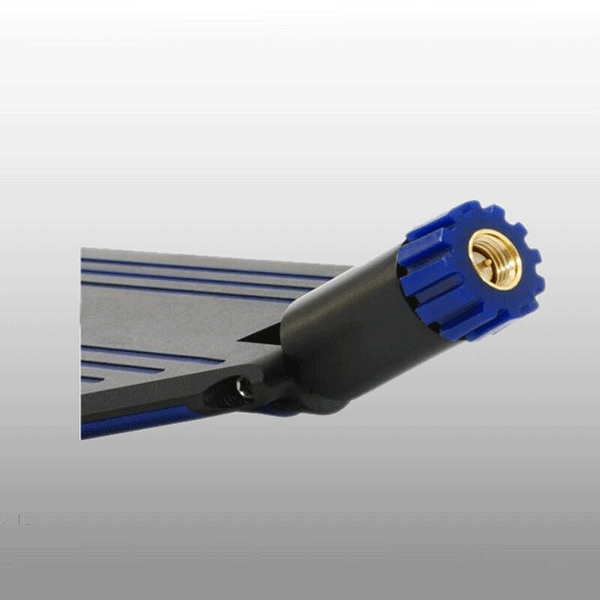

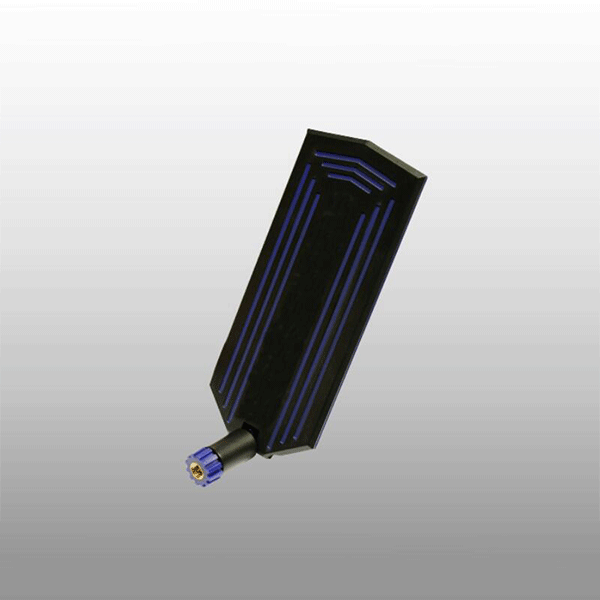

Saluki OmniLog Series omnidirectional antenna is specially developed as small and compact, broadband omnidirectional antenna. Within the most important frequency bands the antenna reaches very high gain up to 6.5dBi. The Antenna offers a heavy-duty 90° knuckle base with SMA connector.
Key Features
Applications
| OG70600 |
Frequency range: 680MHz - 6GHz Nominal impedance: 50Ω VSWR: < 3:1 Peak gain: 6.5dBi Ave. gain: 3.5dBi Max. input power: 5W Polarization: Linear Connector: SMA(m) Size: 173×62×9 mm Weight: 0.054kg |
| OG30800 | Frequency range: 300MHz - 8GHz
Nominal impedance: 50Ω VSWR: < 3:1 Peak gain: 6.5dBi Ave. gain: 3.5dBi Max. input power: 5W Polarization: Linear Connector: SMA(m) Size: 173×62×9 mm Weight: 0.054kg |
